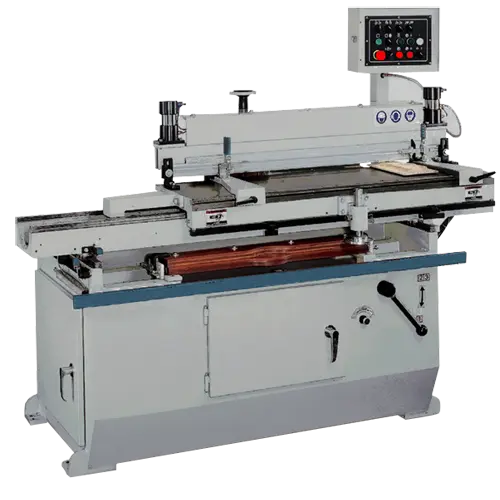

Castaly 55" Manual Slide Raised Panel Door Shaper CS-55PAME
Have one to sell?
ConditionNew
New
Castaly Manual Slide Raised Panel Door Shaper CS-55PAME is specially designed to make all the parts for raised panel doors by one spindle shaper without changing knife (rail stile, panel) to get mass production.
Features:
It is also able to do the chair leg, furniture parts by the maximum 7" width (in and out) copy capacity.
The 6" high stackable spindle with 3 pneumatic stops are easily and accurately setup for each cutter position.
Rigid construction made by heavy sheet metal frame, case iron table & base for durability usage.
Full power industrial motor is suitable for best cutting capacity.
Strong cutting power does not need to be precut for the arch or oval panel.
Linear guide rails and bearings can let the operator moving the table by lightweight and smoothly to get the long life usage.
Cast iron fence locked in the groove to finish square cut and centering the workpiece easily.
Heavy-duty air pistons hold down the workpieces tightly without slide during the cutting process.
Two separate stops for rail, stile or panel arch cutting positions.
SPECIFICATIONS
Max. Cutting Capacity
Length (left to right)
55"
Width (in and out)
7"
Thickness
6"
Max. Cutter Size
7"
Spindle Diameter
1¼ "
Spindle Length
6"
Spindle Speed
9000 RPM
Main Motor
10 HP
Dust Hood
4"
Net Weight
2650 LBS
Gross Weight
3160 LBS
