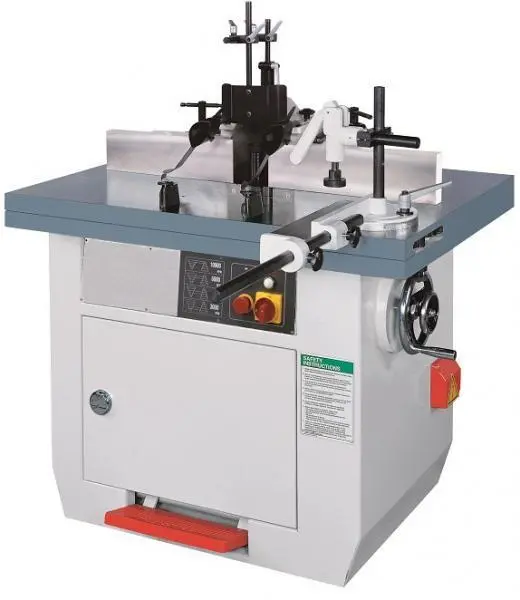

Castaly 1 1/4" Industry Shaper (Sliding Table) SP-742S is one of several Industry Shapers (Sliding Table) available in the Castaly product line. Refer to Features and Specification lists for the one best suited to meet your woodworking needs.
Features:
Designed for heavy industrial work.
Industrial full power motor for maximum cutting capacity.
Quick-change spindles.
Forward / reverse switch.
Individual two side micro adjustable fence.
Precision ground large cast iron table.
Three spindle speeds for versatile cutting.
Industrial full power motor for heavy cutting capacity.
Sealed long-life ball bearing.
Metal 4” dust hood.
Heavy sheet metal cabinet base for durability usage.
Magnetic control for overload protection.
SPECIFICATIONS:
SP-732
SP-735
SP-742
Table Sizes
28" x 32"
27 1/2" x 35 1/2"
31 1/2" x 41 1/2"
Fence Sizes
4 1/3" x 12"
5" x 13 1/2"
Height of Working Table
33 1/2"
Table Insert Diameter
3", 7"
6 1/2", 8 1/2"
Spindle Dimension
Diameter
1", 1 1/4"
Length under Nut
4"
4 1/2"
Stroke
4"
5"
Max. Height under Table
4 1/4"
Speed (RPM)
6000/ 8000/ 10000
3000/ 4500/ 7500/ 10000
Motor
5 HP, 3 PH
7 1/2 HP, 3 PH
N.W.
585 LBS
690 LBS
850 LBS
G.W.
630 LBS
860 LBS
900 LBS
