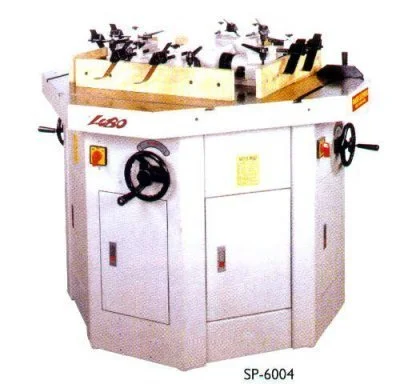

Castaly 4 Side 4 Spindle Shaper SP-6004
Have one to sell?
ConditionNew
New
Castaly 4 Side 4 Spindle Shaper SP-6004 is among a variety of options of Spindle Shapers offered with various features.
Features:
Precision ground cast iron table top with standard sized T-Slot miter gauge.
Rigidly mounted spindle provides accurate vibration-free power transfer.
Heavy-duty split fence system features fully adjustable fence sides.
Heavy-duty alloy spindle for durability & run out free performance.
Spindle height adjustment by precision rack & pinion gears.
Large lockable hand wheels provide smooth accurate spindle adjustments.
Magnetic overload switch for protection on all models except SP-3400.
Two (2) speeds with forward & reverse switches included.
Totally enclosed TEFC motor with sealed for life ball bearings.
Alloy steel spindle for durability.
SPECIFICATIONS:
Table Size (Hexagon)
43" x 43"
Height of Work Table
33½"
Spindle Dimensions:
Diameter
1"
External Length
4"
Stroke
4"
Speed
7000 / 10000 RPM
Max. Dia. Of Table Ring (3 Rings)
6"
Motor
3 HP x 4
N.W.
1300 LBS
G.W.
1500 LBS
