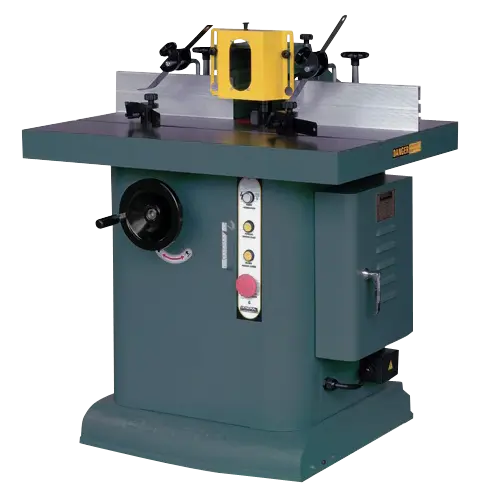

Castaly 1 1/4" Shaper SP-35G
Have one to sell?
ConditionNew
New
Castaly 1 1/4" Shaper SP-35G is one of several Industry Shapers available in the Castaly product line. Refer to Features and Specification lists for the one best suited to meet your woodworking needs.
Features:
Precision ground cast iron table and T-slot miter gauge slot.
Perfect alignment, rigid spindle supports a power transfer system for accuracy.
Individual micro adjustments fence on both sides of spindle by hand wheels.
Large hand wheel for fast movement and lock protection.
Magnetic switch for overload protection.
Spindle travel operated by a rack and scroll gear.
Two spindles speed for versatile cutting.
Forward and reverse switch for cutting directions.
Heavy gauge metal cabinet base.
Alloy steel spindle for durability usage.
Sealed long-life ball bearings.
Standard equipments: Full power motor, dust chute, table inset, spring hold-downs, miter gauge.
SPECIFICATIONS:
Table Dimensions
30” x 40”
Spindle Speed (RPM)
4000 – 10,000
4 Speed
Standard Spindle Dia.
1 ¼”
Spindle Travel
3”
Spindle Under Nut (1")
5”
Spindle Tilt
---
Table Insert
7” & 3 ½
Motor
5 HP, 3 PH
Dust Hood
4” x 1
N.W.
740 lbs.
G.W.
820 lbs.
