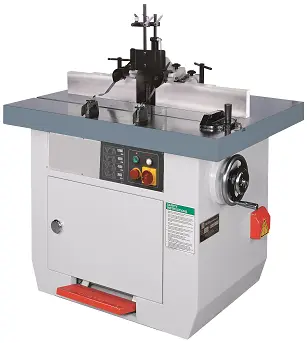

Castaly 1 1/4" Industry Shaper SP-742
Have one to sell?
ConditionNew
New
Castaly 1 1/4" Industry Shaper SP-742 is one of several Industry Shapers available in the Castaly product line. Refer to Features and Specification lists for the one best suited to meet your woodworking needs.
Features:
Designed for heavy industrial work.
Industrial full power motor for maximum cutting capacity.
Quick-change spindles.
Forward / reverse switch.
Individual two side micro adjustable fence.
Precision ground large cast iron table.
Three spindle speeds for versatile cutting.
Industrial full power motor for heavy cutting capacity.
Sealed long-life ball bearing.
Metal 4” dust hood.
Heavy sheet metal cabinet base for durability usage.
Magnetic control for overload protection.
SPECIFICATIONS:
Table Sizes
31 1/2" x 41 1/2"
Fence Sizes
5" x 13 1/2"
Height of Working Table
33 1/2"
Table Insert Diameter
6 1/2", 8 1/2"
Spindle Dimensions:
Diameter
1", 1 1/4"
Length under Nut
4 1/2"
Stroke
5"
Max. Height under Table
4 1/4"
Speed (RPM)
3000/ 4500/ 7500/ 10000
Motor
7 1/2 HP, 3 PH
N.W.
850 LBS
G.W.
900 LBS
