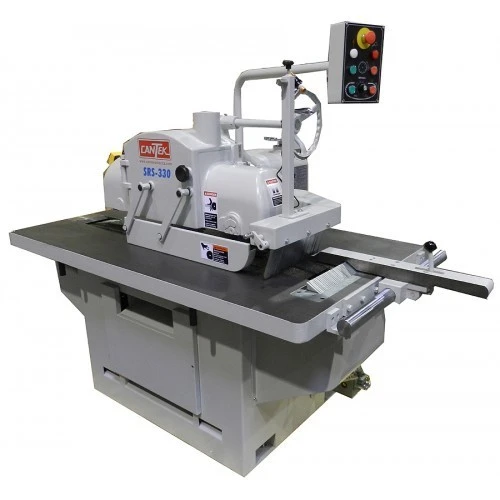

<p>Cantek Single Blade Rip Saw SRS330 is one of several options of Single Blade Rip Saws Cantek has to offer. Refer to Features and Specifications List to find the one best matched for your woodworking needs.</p>
<h3>Features:</h3>
<div class="std">
<ul>
<li>For glue joint straight line ripping.</li>
</ul>
<ul class="disc">
<li>Very rigid machine body with a welded steel frame with an integral cast & machine table, which is fitted with a sturdy cast column & saw unit.</li>
<li>Excellent precision work accuracy and durability.</li>
<li>Absolute straight line feeding to 13 ft.</li>
<li>Precision caterpillar chain and double "VEE" extra long (47.2") guide rails are made of special cast iron the chain connecting pins are made of high grade steel - heat treated & ground for high durability and low wear.</li>
<li>Eight (8) hold-down rolls (6 rows).</li>
<li>Swing down rear table - to prevent damage to the table chain area.</li>
<li>Quick release cam & adjustment to the rip fence.</li>
<li>Three (3) sets of anti-kickback fingers; 2 top and 1 set in the table.</li>
<li>Precision built saw arbor constructed of nickel chrome steel, large diameter, accurately ground, hardened and dynamically balanced.</li>
<li>Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out and axial thrust) - V Belt driven from bleow.</li>
<li>VFD - infinitely variable feed system with feed speeds of 30~130 FPM (10-40 MPM).</li>
<li>Easy access controls mounted on a pendant - with easy adjustment to the controls.</li>
<li>Automatic centralized lubrication system ensures permanent oil film between the chain and guide rail. When oil runs out the machine track stops running to avoid damage to track.</li>
<li>Complete with safety devices.</li>
<li>Soft start - Star Delta starter.</li>
<li>Solid steel round fence bar.</li>
<li>Telemecanique U/L magnetic starters to UL/CSA standards.</li>
<li>Useable chain length 47".</li>
<li>Glue line Guarantee: 13 ft.</li>
</ul>
<p><strong>OPTIONS INCLUDED:</strong><br />(1) KANEFUSA 12" dia. x 1" bore carbide sawblade 48 tooth. Laser cooling slots. A.T.B. specifically designed for a chain feed rip saw.</p>
<p> </p>
<table style="width: 462px;">
<tbody>
<tr>
<td colspan="2" width="100%">
<p><strong>SPECIFICATIONS</strong></p>
</td>
</tr>
<tr>
<td width="52%">
<p>Max. Workpiece Thickness</p>
</td>
<td style="text-align: center;" width="47%">
<p>4.33"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Min. Workpiece Length</p>
</td>
<td style="text-align: center;" width="47%">
<p>8"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Distance between Saw and Column</p>
</td>
<td style="text-align: center;" width="47%">
<p>18.1"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Saw Arbor Diameter</p>
</td>
<td style="text-align: center;" width="47%">
<p>1"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Saw Blade Diameter</p>
</td>
<td style="text-align: center;" width="47%">
<p>10-14"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Saw Arbor Speed</p>
</td>
<td style="text-align: center;" width="47%">
<p>4300 RPM</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Usable Chain Length</p>
</td>
<td style="text-align: center;" width="47%">
<p>47"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Glue Line Guarantee</p>
</td>
<td style="text-align: center;" width="47%">
<p>13' (+/-0.0098" or 0.25mm)</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Feed Speeds Variable</p>
</td>
<td style="text-align: center;" width="47%">
<p>30 to 130 FPM</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Arbor Motor</p>
</td>
<td style="text-align: center;" width="47%">
<p>20 HP</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Feed Motor</p>
</td>
<td style="text-align: center;" width="47%">
<p>2 HP</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Dust Collection Outlet</p>
</td>
<td style="text-align: center;" width="47%">
<p>4"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Table Size</p>
</td>
<td style="text-align: center;" width="47%">
<p>36.6" x 64.6"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Table Height</p>
</td>
<td style="text-align: center;" width="47%">
<p>31-7/8"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Net Weight</p>
</td>
<td style="text-align: center;" width="47%">
<p>3190 lbs</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Shipping Weight</p>
</td>
<td style="text-align: center;" width="47%">
<p>3630 lbs</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Machine Dimensions</p>
</td>
<td style="text-align: center;" width="47%">
<p>78-3/4" x 44" x 64"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Shipping Dimensions</p>
</td>
<td style="text-align: center;" width="47%">
<p>76-3/4" x 53" x 67"</p>
</td>
</tr>
<tr>
<td width="52%">
<p>Electrics</p>
</td>
<td style="text-align: center;" width="47%">
<p>230/3/60</p>
</td>
</tr>
</tbody>
</table>
</div>
