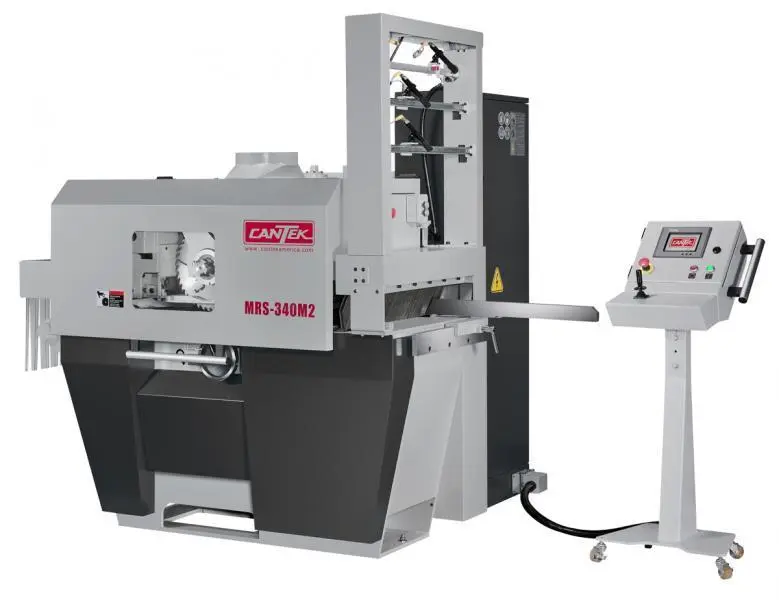

<p>Cantek Shifting Saw Multi Rip Saw MRS340M is designed to achieve maximum material yield with greatly reduced setup times. It is equipped with fixed blade(s) and one or two shifting saws. User friendly touch screen controller allows you to adjust the blades through stored programs or jogging them into place by use of a joystick.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Heavy-duty steel main frame.</li>
<li>Precision straight line feeding caterpillar chain is made from cast iron.</li>
<li>High frequency hardened feed chain guide rails provide up to 3-times the life of an untreated rail. This ensures a more precise cut.</li>
<li>Chain connecting pins are made of high grade steel, heat treated & ground for high durability & low wear.</li>
<li>Equipped with (4) pressure rollers which are pneumatically tensioned to ensure outstanding stability of the work piece during cutting operations.</li>
<li>Top pressure roller assembly adjustment is motorized with linear scale for quick thickness adjustment.</li>
<li>User friendly touch screen control on moveable pedestal for optimum operator convenience.</li>
<li>(1) fully programmable blade position (10 programs of 10 sets each)or infinitely variable through joystick control.</li>
<li>Touch screen control also incorporates error diagnostics which allows the operator to more easily identify faults that may arise.</li>
<li>Saw blade positioning is accomplished by high precision ball screws coupled with industrial series servo motors and controls. Blade speed is infinitely adjustable from .78” to 3.54”/sec. (10 to 90mm per second) to match all operations.</li>
<li>Precision spindle assembly is made ofhigh wear resistant nickel chrome steel alloy.</li>
<li>Shifting saw bushings are specially designed for high accuracy and fast saw positioning.</li>
<li>(1) Quick Set Mechanically-Locked Saw Collar includedfor fast accurate sure holding of (1) saw blade in any stationary position.</li>
<li>Short stock cutting device is included (12” blades, 14” optional) which aids in holding the workpiece longer for optimum cutting results.</li>
<li>(3) rows of anti-kickback fingers, 3 Top & 1 Bottom.</li>
<li>Variable feed speeds of 16~135 FPM. (5~40m/min) is accomplished with an electronic inverter.</li>
<li>Electronic overload sensing system is integrated to the inverter feed system providing automatic speed reduction under heavy amperage load.</li>
<li>Laser light alignment system including (4) 30mw Lasers including (3) fixed & (1) moving which adjust automatically when the blades are being positioned. This laser light package improves material yield and reduces defects.</li>
<li>Powered outfeed roll ensures that the material being cut leaves the machine completely.</li>
<li>Electronic centralized lubrication system provides lubrication to the chain track assembly for optimum wear resistance.</li>
<li>Automatic star-delta starter (low amperage – soft start) and low voltage controls.</li>
<li>High quality Schneider electrical components (CSA/ UL approved).</li><ul>
<li>Minimum Distance between Saws:<br>
</li><li>Fixed saw to 1st moving saw: 20mm<br>
</li><li>Between (2) moving saws: 50mm<br>
</li><li>Machine Electrics 460/3/60 to UL/CSA Standards (Other voltages available on request)<br>
</li></ul>
</ul>
</div>
<p> </p>
<table border="0">
<tbody>
<tr>
<td><strong>Specifications:</strong></td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>Max. Cutting Thickness </td>
<td style="text-align: center;"><p>2.95" (75mm) with 12”x3.4mm standard blade</p>
<p> 3.93" (100mm) with 14"x3.4mm optional blade</p></td>
</tr>
<tr>
<td>Max. Cutting Width</td>
<td style="text-align: center;">13.4″ (340 mm)</td>
</tr>
<tr>
<td>Max. Material Width</td>
<td style="text-align: center;">20.67″ (525 mm)</td>
</tr>
<tr>
<td>Min. Material Length (standard)</td>
<td style="text-align: center;">21.7″ (550 mm)</td>
</tr>
<tr>
<td>Max. Sawblade Diameter</td>
<td style="text-align: center;">14″ (355 mm)</td>
</tr>
<tr>
<td>Min. Sawblade Diameter</td>
<td style="text-align: center;">12″ (305 mm)</td>
</tr>
<tr>
<td>Sawblade Bore</td>
<td style="text-align: center;">Ø90 mm</td>
</tr>
<tr>
<td>Saw Arbor Diameter</td>
<td style="text-align: center;">Ø70 mm (2.8″)</td>
</tr>
<tr>
<td>Saw Arbor Speed</td>
<td style="text-align: center;"><p>4500 RPM with 12” standard blade</p>
<p>3800 RPM with 14” optional blade</p></td>
</tr>
<tr>
<td>Thickness Adjustment Motor</td>
<td style="text-align: center;">0.5 HP</td>
</tr>
<tr>
<td>Saw Arbor Motor</td>
<td style="text-align: center;"><p>50 HP - Standard</p></td>
</tr>
<tr>
<td>Feed Motor</td>
<td style="text-align: center;">3 HP</td>
</tr>
<tr>
<td>Variable Feed Speed</td>
<td style="text-align: center;">16~131 FPM (5-40 M/min)</td>
</tr>
<tr>
<td>Dust Hood Diameter</td>
<td style="text-align: center;">(1) 8″ x (1) 4″</td>
</tr>
<tr>
<td>Table Height from Floor (H)</td>
<td style="text-align: center;">33.46″ (850 mm)</td>
</tr>
<tr>
<td>Table Area (L x W)</td>
<td style="text-align: center;">60″ x 23.4″ (1525 x 595 mm)</td>
</tr>
<tr>
<td><p>Electrical information</p></td>
<td style="text-align: center;"><p>460/3/60 - 70.5 Full Load Amps</p></td>
</tr>
<tr>
<td>Compressed Air Requirement</td>
<td style="text-align: center;">80~90 PSI<br></td>
</tr><tr><td><p>Shipping dimensions</p></td><td><p style="text-align: center;">90” x 68” x 89”</p></td></tr><tr><td><p>Machine weight (NW / GW) </p></td><td><p style="text-align: center;">4840 lbs. / 5170 lbs. </p></td></tr>
</tbody>
</table>
<p>Options Included:</p>
<p></p>
<p>Pneumatic Pressure Roller System INCLUDED</p>
<p>(1) Fixed Saw Seat INCLUDED</p>
<p>(1) Pressure Plate (for 12” dia. blade) - see specifications for cutting capacity information INCLUDED</p>
<p>(3) 12” Thin kerf Saw blades: 305mm dia. x 90mm bore x 50 teeth x 2.6mm kerf - Maximum cutting thickness - 50mm. INCLUDED</p>
<p>(3) 20mW Laser unit (red beam) INCLUDED</p>
<p></p>
<p>Available Options:</p>
<p></p>
<p>Auto Infeed Table – 3M Long</p>
<p>With electric fence (1 HP x 1), with inverter</p>
<p>With chain for boards (1 HP x 1)</p>
<p>Feeding motor: 1HP, Controlled by Joystick</p>
<p>Min. working length: 900mm</p>
<p>Infeed table with fence: 3 meter long.</p>
<p></p>
<p>Auto Infeed Table – 5M Long</p>
<p>Laser unit 20 mW (red light projection 4~6 M, made in Taiwan), for fixed saw</p>
<p>Saw collar – to add one fixed saw</p>
<p>12” x 2.6 mm saw blade (Made in Taiwan) Max. thickness 50 mm</p>
<p>60HP Saw Motor in lieu of Standard 50HP</p>
<p>75HP Saw Motor in lieu of Standard 50HP</p>
<div><strong>MRS340M1:</strong> 1 Moving Blade Multi Rip Saw</div>
<div><strong>MRS340M2: </strong> 2 Moving Blade Multi Rip Saw</div>
