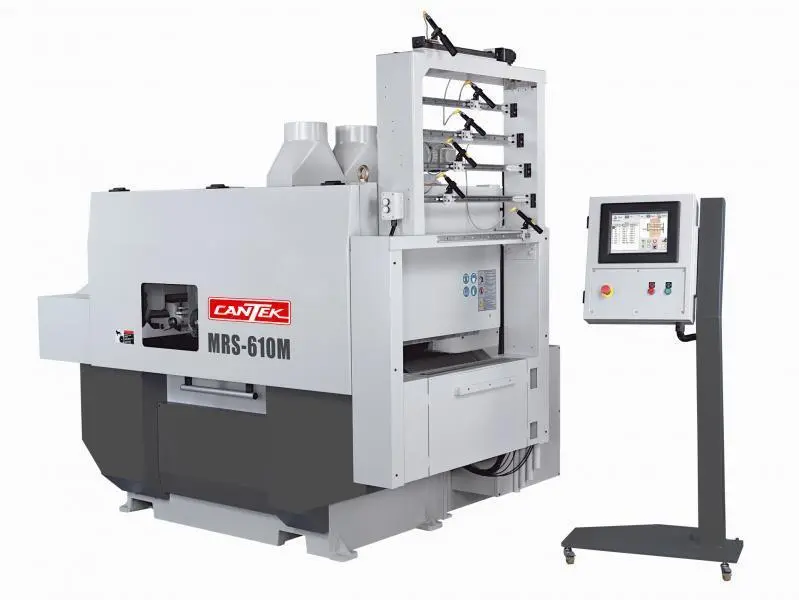

<p>Cantek 24" Wide HD Chain Fed Rip Saw MRS610 is one of several Rip Saw options available through Cantek. Refer to specific features and specifications to determine the best machine to meet your woodworking needs.</p>
<h3>Features:</h3>
<div class="std">
<ul>
<li>Main frame is cast iron; all the main parts are enclosed, ensuring protection and perfect stability.</li>
<li>Nickel chrome steel saw arbor with 70 mm OD – dble. keyed quick removal sleeve.</li>
<li>Heavy-duty precision straight line feeding caterpillar chain type.</li>
<li>The top pressure roller system is electronically positioned from the front control panel with regards to lumber thickness <em>with position readout.</em></li>
<li>Pneumatic pressure (infinitely variable) to the hold-down feed rollers.</li>
<li>Variable feed speeds of 16’–200’ min. (5-40m/min).</li>
<li>Electronic overload sensing system.</li>
<li><em>New – s</em>hort stock feeding device (min. length 12”).</li>
<li>Centralized lubrication system.</li>
<li>Powered top & bottom outfeed rollers.</li>
<li>3 rows of anti-kickback fingers.</li>
<li>Telemecanique-Square D- Automatic Star-Delta Starter.</li>
<li>Controls are mounted on the saw.</li>
<li>Electrics to 230/460 or 575 volts 3 phase 60 cycles to UL/CSA Standards or 380 or 415 volts 3 phase 50 cycles.</li>
</ul>
<p> </p>
<table style="width: 540px;">
<tbody>
<tr>
<td>
<p><strong>SPECIFICATIONS</strong></p>
</td>
<td style="text-align: center;">
<p> </p>
</td>
</tr>
<tr>
<td>
<p>Max Cutting Width</p>
</td>
<td style="text-align: center;">
<p>24" (610 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Max Material Width of pass through</p>
</td>
<td style="text-align: center;">
<p>35.4" (900 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Max Cutting Thickness</p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p> - without pressure plate</p>
</td>
<td style="text-align: center;">
<p>4.2" (110 mm)</p>
</td>
</tr>
<tr>
<td>
<p> - with pressure plate</p>
</td>
<td style="text-align: center;">
<p>3.7" (95 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Motor (standard)</p>
</td>
<td style="text-align: center;">
<p>50 HP (Larger motors - to 125 HP Optional)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Arbor Diameter</p>
</td>
<td style="text-align: center;">
<p>2.8" (70 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Arbor Speed</p>
</td>
<td style="text-align: center;">
<p>3800 rpm (50,60HZ)</p>
</td>
</tr>
<tr>
<td>
<p>Max Saw Blade Diameter</p>
</td>
<td style="text-align: center;">
<p>14" (355 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Min. Saw Blade Diameter</p>
</td>
<td style="text-align: center;">
<p>12" (305 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Blade Bore</p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p> - mounted directly on shaft</p>
</td>
<td style="text-align: center;">
<p>2.8" (70 mm)</p>
</td>
</tr>
<tr>
<td>
<p> - mounted on saw sleeve</p>
</td>
<td style="text-align: center;">
<p>3.5" (90 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Feed Motor</p>
</td>
<td style="text-align: center;">
<p>5 HP</p>
</td>
</tr>
<tr>
<td>
<p>Pressure Roller Raising Motor</p>
</td>
<td style="text-align: center;">
<p>0.5 HP</p>
</td>
</tr>
</tbody>
</table>
</div>
