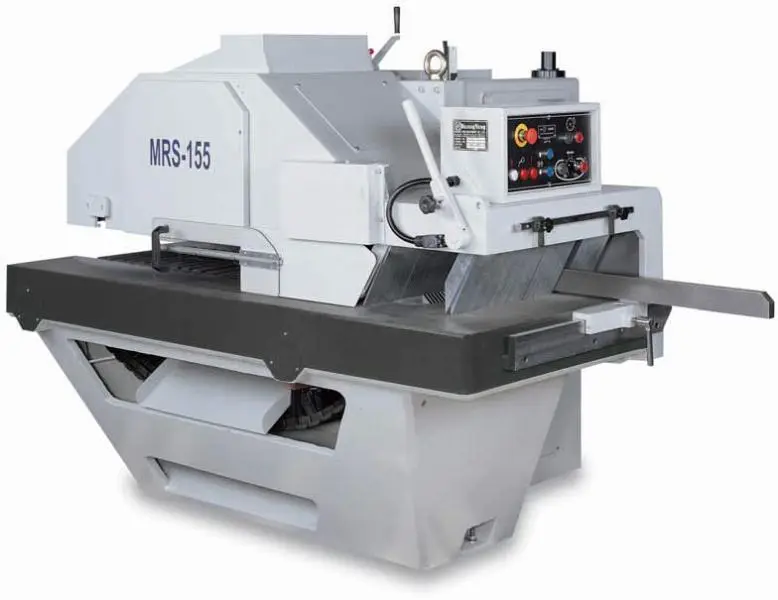

<p>Cantek Heavy Duty Multi Rip Saw MRS155 features an extra robust 100 HP motor.</p>
<h3>Features:</h3>
<div class="std">
<ul class="disc">
<li>Extra Robust 100 HP motor.</li>
<li>Great cutting thickness of 155 mm (6.1").</li>
<li>Continuous duty 100 HP arbor motor allows deep cutting speeds of thick lumber.</li>
<li>MRS155 has a massive cast iron base, composing the majority of total machine weight of 2700 kg. This design provides incredible absorption characteristics under deep cutting, especially while performing thick lumber ripping with a multi-blade setup.</li>
<li>Precision chain and rails (dip chain) system facilitates accurate cutting operations.</li>
<li>Link chain feed made of special cast iron, high-grade steel connecting pins are heat-treated and precision ground.</li>
<li>Three (3) anti-kickback fingers; 2 top and 1 bottom row.</li>
<li>Digitally controlled lubricator for feed chain ensures a permanent oil film between the chain and the guide rails. If there is insufficient oil in the tank, the warning lamp lights up and the feed chain stops running automatically.</li>
<li>Electrical amperage display protects overload of the saw motor by slowing the link chain down automatically.</li>
</ul>
<h4><strong>OPTIONS INCLUDED:</strong></h4>
<ul>
<li>CE safety guard (not shown).</li>
<li>Long infeed fence with round bar (not shown).</li>
</ul>
<p> </p>
<table style="width: 474px;">
<tbody>
<tr>
<td width="61%">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td style="text-align: center;" width="37%">
<p> </p>
</td>
</tr>
<tr>
<td width="61%">
<p>Max. Cutting Thickness</p>
</td>
<td style="text-align: center;" width="37%">
<p>155 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Max. Cutting Width</p>
</td>
<td style="text-align: center;" width="37%">
<p>350 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Distance of Fixed Inside Blade to Column</p>
</td>
<td style="text-align: center;" width="37%">
<p>380 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Min. Working Length</p>
</td>
<td style="text-align: center;" width="37%">
<p>700 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Max. Saw Blade Diameter</p>
</td>
<td style="text-align: center;" width="37%">
<p>450 mm (18")</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Min. Saw Blade Diameter</p>
</td>
<td style="text-align: center;" width="37%">
<p>355 mm (14")</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Saw Blade Bore</p>
</td>
<td style="text-align: center;" width="37%">
<p>70 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Saw Arbor Diameter</p>
</td>
<td style="text-align: center;" width="37%">
<p>55 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Saw Arbor Speed<br /> (using 16"-18" saw blade)</p>
</td>
<td style="text-align: center;" width="37%">
<p>2500 RPM</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Saw Arbor Speed<br /> (using 16"-18" saw blade)</p>
</td>
<td style="text-align: center;" width="37%">
<p>3000 RPM</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Saw Arbor Motor</p>
</td>
<td style="text-align: center;" width="37%">
<p>75 HP</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Feed Motor</p>
</td>
<td style="text-align: center;" width="37%">
<p>3 HP</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Variable Feed Speed</p>
</td>
<td style="text-align: center;" width="37%">
<p>2.5-24 m/min</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Powered Raise and Lower of Roller Group</p>
</td>
<td style="text-align: center;" width="37%">
<p>1 HP</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Dust Hood Diameter</p>
</td>
<td style="text-align: center;" width="37%">
<p>200 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Table Height (pass line)</p>
</td>
<td style="text-align: center;" width="37%">
<p>745 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Table Area (L x W)</p>
</td>
<td style="text-align: center;" width="37%">
<p>1840 x 790 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Overall Dimensions (L x W x H)</p>
</td>
<td style="text-align: center;" width="37%">
<p>23040 x 1720 x 1600 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Packing Dimensions (L x W x H)</p>
</td>
<td style="text-align: center;" width="37%">
<p>2090 x 1720 x 1600 mm</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Net Weight</p>
</td>
<td style="text-align: center;" width="37%">
<p>2700 kgs</p>
</td>
</tr>
<tr>
<td width="61%">
<p>Gross Weight</p>
</td>
<td style="text-align: center;" width="37%">
<p>3000 kgs</p>
</td>
</tr>
</tbody>
</table>
