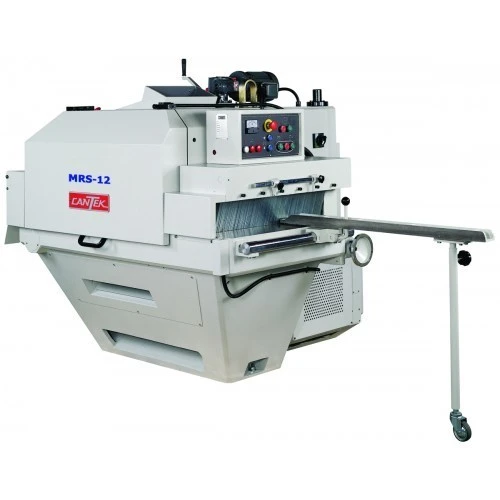

<p>Cantek Multi Rip Saw MRS12 is one of several Multi Rip Saw options available through Cantek. Refer to specific features and specifications to determine the best machine to meet your woodworking needs.</p>
<h3>Features:</h3>
<div class="std">
<ul>
<li>The frame is cast iron; all the main parts are enclosed, ensuring protection and perfect stability.</li>
<li>Straight line caterpillar feeding with heavy guided chain with rubber inserts. Chain blocks are special cast iron with heat treated & precision ground pins.</li>
<li>Nickel chrome steel saw arbor with 70 mm OD – dble. Keyed quick removal sleeve.</li>
<li>Three (3) sets of anti-kickback fingers; 2 top, 1 bottom.</li>
<li>Powered rise & fall to the pressure rollers.</li>
<li>New style round fence bar support with quick shift long fence.</li>
<li>Automatic centralized lubrication system.</li>
<li>Automatic Star-Delta Starter (slow speed start) and low voltage controls.</li>
<li>C.E. style European guard & safety features.</li>
<li>Long fence for control of long material.</li>
<li>Electrics to 230/460 or575 volts 3 phase 60 cycles – as required to UL/CSA Standards.</li>
<li>With three (3) rubber coated hold down rollers at outfeed end of machine.</li>
<li>Overload protection device - feed speed will slow down automatically if saw motor becomes overloaded.</li>
</ul>
<p> </p>
<table style="width: 466px;">
<tbody>
<tr>
<td>
<p><strong>SPECIFICATIONS</strong></p>
</td>
<td style="text-align: center;">
<p> </p>
</td>
</tr>
<tr>
<td>
<p>Maximum Working Thickness</p>
</td>
<td style="text-align: center;">
<p><span style="color: #222222; font-family: AvenirNextLTW01-Regular; font-size: 13px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; white-space: normal; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: #ffffff; text-decoration-style: initial; text-decoration-color: initial; display: inline !important; float: none;">3 3/8” (85mm) with standard pressure shoe</span></p>
<p>With short stock attachment: 2 ¾”<br />(70 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Minimum Length </p>
</td>
<td style="text-align: center;">
<p>12” with short stock attachment</p>
</td>
</tr>
<tr>
<td>
<p>Saw Sleeve Usable Length <br />(between outside saws) </p>
</td>
<td style="text-align: center;">
<p>12" (305 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Blade Dia.</p>
</td>
<td style="text-align: center;">
<p>200 to 305 mm (8” to 12”)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Arbor Sleeve OD (Diameter) </p>
</td>
<td style="text-align: center;">
<p>70 mm</p>
</td>
</tr>
<tr>
<td>
<p>Saw Arbor Diameter</p>
</td>
<td style="text-align: center;">
<p>50 mm</p>
</td>
</tr>
<tr>
<td>
<p>Saw Arbor Vertical Adjustment</p>
</td>
<td style="text-align: center;">
<p>3.6” (90 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Saw Motor HP</p>
</td>
<td style="text-align: center;">
<p>60 HP 460 volt</p>
</td>
</tr>
<tr>
<td>
<p>Powered Pressure Rollers (Rise/Fall)</p>
</td>
<td style="text-align: center;">
<p>½ HP motor</p>
</td>
</tr>
<tr>
<td>
<p>Saw Arbor Speed</p>
</td>
<td style="text-align: center;">
<p>3800 RPM</p>
</td>
</tr>
<tr>
<td>
<p>Feed Speeds</p>
</td>
<td style="text-align: center;">
<p>25 - 100 FPM</p>
</td>
</tr>
<tr>
<td>
<p>Feed Motor HP</p>
</td>
<td style="text-align: center;">
<p>3 or 5 HP</p>
</td>
</tr>
<tr>
<td>
<p>Voltage</p>
</td>
<td style="text-align: center;">
<p>Machine can be ordered 230, 460, <br /> or 575 v <br />stock machine is 460 v electrics</p>
</td>
</tr>
<tr>
<td>
<p>Table Size</p>
</td>
<td style="text-align: center;">
<p>30” x 60"</p>
</td>
</tr>
<tr>
<td>
<p>Table Height from Floor</p>
</td>
<td style="text-align: center;">
<p>33.5"</p>
</td>
</tr>
<tr>
<td>
<p>Net Weight</p>
</td>
<td style="text-align: center;">
<p>4510 lbs.</p>
</td>
</tr>
<tr>
<td>
<p>Shipping Weight</p>
</td>
<td style="text-align: center;">
<p>5060 lbs.</p>
</td>
</tr>
<tr>
<td>
<p>Machine Dimensions</p>
</td>
<td style="text-align: center;">
<p>82.68” x 59” x 56 ½”</p>
</td>
</tr>
<tr>
<td>
<p>Shipping Dimensions</p>
</td>
<td style="text-align: center;">
<p>70.87” x 66.93” x 63”</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
</div>
