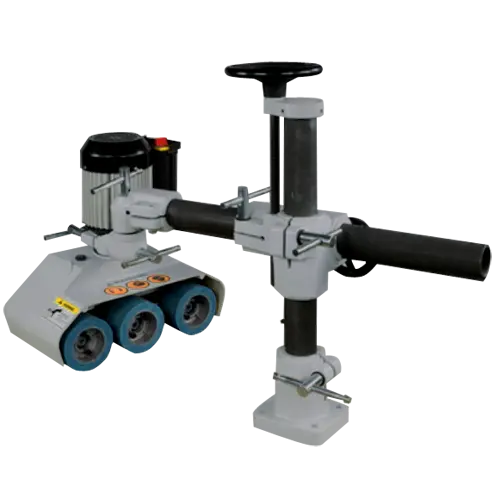

<p>Castaly ST-301/ 303FD 3 Rolls Power Feeder is one of many power feeders available to meet all your woodworking needs.</p>
<h3>Features:</h3>
<ul>
<li>With the powerful feeding strength, one can freely & simply assemble, dismantle & adjust it.</li>
<li>It may be installed onto the circular saw, shaper, sander, router, planer serving as one’s invisible third hand at work.</li>
<li>There are 3 feed rollers on this feeder. Each roller has a suspender to hold simultaneously the workpiece at different degrees of thickness. It is also used to help the feed pressure.</li>
<li>In case you need a large space between the rollers, you can take off the middle roller so the remaining rollers may be used for curve driving.</li>
<li>For spindle molder, the feeder may be adjusted to the leveling direction for side feed to meet the requirement of various processing condition.</li>
<li>There are 2 sets of matching & interchangeable gears of variable sizes to create for stages of feeding speed.</li>
<li>Forward & reverse feeding switch.</li>
<li>Universal support stand with cast iron base, main bracket, thick refaced column and aluminum hand wheels for vertical and horizontal positioning.</li>
</ul>
<p> </p>
<table style="width: 621px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="148">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="129">
<p align="center"><strong>ST-301 FD</strong></p>
</td>
<td width="135">
<p align="center"><strong>ST-303 FD</strong></p>
</td>
</tr>
<tr>
<td>
<p>Feeding Speed (Ft/Min)</p>
</td>
<td>
<p align="center">13, 26, 36, 72</p>
</td>
<td>
<p align="center">13, 26, 36, 72</p>
</td>
</tr>
<tr>
<td>
<p>Roller Size (D x W)</p>
</td>
<td>
<p align="center">4 3/4" x 2 3/8"</p>
</td>
<td>
<p align="center">4 3/4" x 2 3/8"</p>
</td>
</tr>
<tr>
<td>
<p>Motor</p>
</td>
<td>
<p align="center">1 HP, 1 PH, 230V</p>
</td>
<td>
<p align="center">1 HP, 3 PH, 230V </p>
</td>
</tr>
<tr>
<td>
<p>Roller Suspension</p>
</td>
<td>
<p align="center">1"</p>
</td>
<td>
<p align="center">1"</p>
</td>
</tr>
<tr>
<td>
<p>N.W.</p>
</td>
<td>
<p align="center">134 LBS</p>
</td>
<td>
<p align="center">134 LBS</p>
</td>
</tr>
<tr>
<td>
<p>G.W.</p>
</td>
<td>
<p align="center">147 LBS</p>
</td>
<td>
<p align="center">147 LBS</p>
</td>
</tr>
</tbody>
</table>
