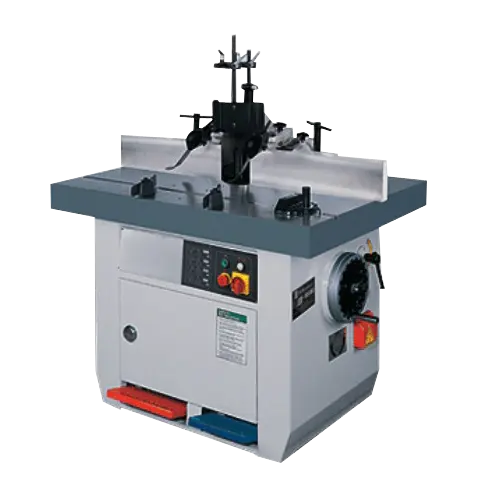

Castaly 1 1/4" Industry Shaper SP-750
Have one to sell?
ConditionNew
New
Castaly 1 1/4" Industry Shaper SP-750 is one of several Industry Shapers available. Refer to the features and specifications of each to find the one that best meets your requirements.
Features:
Designed for heavy industrial work.
Industrial full power motor for maximum cutting capacity.
Precision ground large cast iron table.
Three spindle speeds for versatile cutting.
Industrial full power motor for heavy cutting capacity.
Sealed long-life ball bearing.
Heavy sheet metal cabinet base for durability usage.
Magnetic control for overload protection.
Quick-change spindles.
Individual two side micro adjustable fence.
SPECIFICATIONS:
Table Sizes
48" x 36 1/2"
Fence Sizes
23 1/2" x 5 3/4"
Height of Working Table
35 1/2"
Spindle Dimensions:
Diameter
1", 1 1/4"
Length under Nut
4", 5 1/2"
Stroke
7"
Table Insert
6 1/4" ~ 13"
Speed (RPM)
3000/ 4500/ 7500/ 10000
Motor
7-1/2 HP, 3 PH (10 HP Opt.)
Spindle Tilt (Opt.)
-5 ~ +45 Degree
Sliding Table (Opt.)
13" x 48"
Sliding Table Stroke (Opt.)
46"
Locking of Spindle
by Foot Pedal
Locking of Brake
by Foot Pedal
Machine Sizes
53" x 42" x 51"
N.W.
1480 LBS
