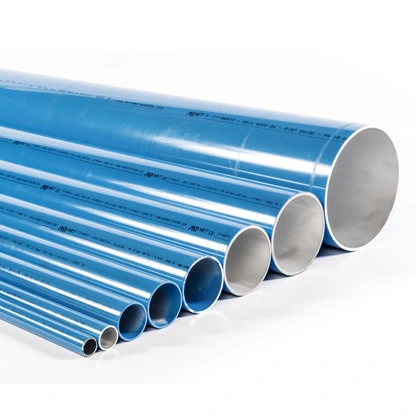

AIRnet Aluminum Pipe for Air (5.7 m / 18.7 ft)

Have one to sell?

530-893-2444

info@globalsalesgroupinc.com

ConditionNew

Quantity

AIRNET AIR PIPING REFER TO PART LIST Piping | Global Sales Group Inc (1)

AIRNET AIR PIPING REFER TO PART LIST Piping | Global Sales Group Inc

New

Have one to sell?

Document (1)

airnet_brochure_3.pdf

Overview

Type:

Piping

Manufacturer:

AIRNET AIR PIPING

Model:

REFER TO PART LIST

Condition:

Build To Order

Stock #:

665

Status:

For Sale

Description

AIRnet is a compressed air piping system that delivers quality air exactly where you need it, from compressor to the point of use. Fast ~ Thanks to a smart design and low weight materials, AIRnet can be installed 70% faster than conventional systems. Easy ~ AIRnet pipes and fittings are assembled in just a few steps by a single installer, without the need for heavy machinery. Reliable ~ The durable, corrosion-free AIRnet pipes and fittings come with a 10-year warranty. Low friction and seamless connections minimize pressure drop. <h3>PERFORMANCE CRITERIA</h3> <ul> <li>For compressed air, vacuum and nitrogen gas.</li> <li>Vacuum Level: 0.013 bar abs.</li> <li>Operating Pressure: - 20-50 mm & 100 mm (3/4-2”, 4”): max 16 barg (232 psig) - 63-80 mm (2 1/2-3”): max 13 barg (188 psig).</li> <li>Operating Temperature Limits: - 20-50 mm & 100 mm (3/4”-2”, 4”): -20°C to 80°C (-4°F to 176°F) - 63-80 mm (2 1/2”-3”): -20°C to 70°C (-4°F to 158°F).</li> <li>Lowest Allowable Pressure Dewpoint: -70°C (-94°F).</li> <li>Resistant to the effect of compressor oils (mineral oil/PAO based/Ester based oils).</li> <li>AIRnet pipes are resistant to direct UV radiation and ﬁttings are resistant to indirect UV radiation, corrosion-free.</li> <li>Leak-resistant.</li> <li>Compatible with oil-free and oil-injected compressors.</li> <li>For indoor installation (protected against direct sunlight, rain, snow or wind).</li> </ul>     <table> <tbody> <tr> <td> <h3>Product Range:</h3> </td> <td> </td> </tr> <tr> <td> Diameter Pipes and Fittings </td> <td> 20, 25, 40, 50, 63, 80, 100, 158 </td> </tr> <tr> <td> Pipes </td> <td> Blue, green, straight 6 meter, straight 3 meter, S-bend, U-bend. </td> </tr> <tr> <td> Fittings </td> <td> Straight connections, reductions, tee, elbow 45°, elbow 90°, end cap, valves, quick drop, nipple, adaptor union, ﬂange, threaded ﬁttings. </td> </tr> <tr> <td> Fixtures </td> <td> Pipe clip, pipe clip spacer, valve support, ﬂange support, pipe support/hanging solutions. </td> </tr> <tr> <td> Tools </td> <td> Spanner, drill bit, drill bit holder, pipe cutter, pipe cutter spare blade, deburr, torque wrench, slide ﬂuid. </td> </tr> <tr> <td> Accessories </td> <td> Hose, conductivity strip, ﬂange nuts and bolts, threaded couplings. </td> </tr> </tbody> </table> <table> <tbody> <tr> <td> Part Number </td> <td style="text-align: center;"> AIRNET Ø [mm] </td> <td style="text-align: center;"> Lot Size </td> </tr> <tr> <td> 2811 1000 10 </td> <td style="text-align: center;"> 20 </td> <td style="text-align: center;"> 10 </td> </tr> <tr> <td> 2811 2000 10 </td> <td style="text-align: center;"> 25 </td> <td style="text-align: center;"> 10 </td> </tr> <tr> <td> 2811 4000 05 </td> <td style="text-align: center;"> 40 </td> <td style="text-align: center;"> 05 </td> </tr> <tr> <td> 2811 5000 04 </td> <td style="text-align: center;"> 50 </td> <td style="text-align: center;"> 04 </td> </tr> <tr> <td> 2811 6000 03 </td> <td style="text-align: center;"> 63 </td> <td style="text-align: center;"> 03 </td> </tr> <tr> <td> 2811 7000 02 </td> <td style="text-align: center;"> 80 </td> <td style="text-align: center;"> 02 </td> </tr> <tr> <td> 2811 8000 00 </td> <td style="text-align: center;"> 100 </td> <td style="text-align: center;"> 01 </td> </tr> <tr> <td> 2811 9000 06 </td> <td style="text-align: center;"> 158 </td> <td style="text-align: center;"> 06 </td> </tr> </tbody> </table>
