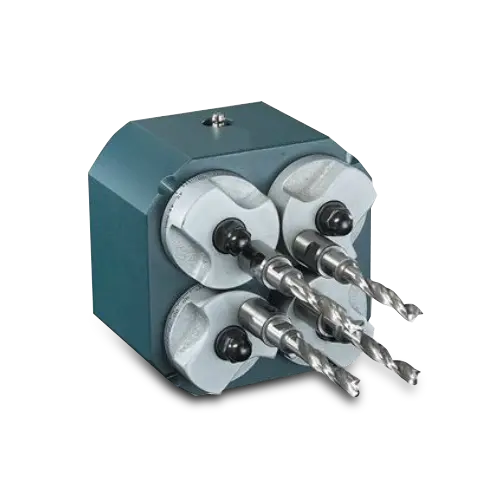

Castaly Multiple Boring Head A-4CW Series
Have one to sell?
ConditionNew
New
Castaly Multiple Boring Head A-4CW Series features graduation adjustment for boring fixed distance holes on a square layout.
Features:
Adjustable spacing between spindles: Ø1.34"~Ø8.11" (Ø34~Ø206 mm).
Great drilling capacity for wood Ø0.47"~Ø2" (Ø12~Ø50 mm).
The boring head accommodates high running speeds up to 5500 RPM.
Exclusively designed with arc theorem.
Graduation adjustment for boring fixed distance holes on square layout.
Ideal for application for general furniture, assembly toys, etc.
Suited for fitting on general boring machines.
Specifications:
Dimensions
A
B
C
D
E
G
A-4CW34
0.39" (10 mm)
0.39" (10 mm)
1" (28 mm)
2" (55 mm)
5" (121 mm)
0.12" (3 mm)
A-4CW42
6" (145 mm)
A-4CW48
7" (170 mm)
A-4CW58
8" (192 mm)
A-4CW78
3.15" (80 mm)
10" (260 mm)
Specifications:
Dimensions
H
L1
L
X
Y
A-4CW34
1" (15 mm)
5" (115 mm)
6" (140 mm)
3" (70.7 mm)
3" (70.7 mm)
A-4CW42
5" (117 mm)
5" (132 mm)
A-4CW48
4" (109 mm)
5" (134 mm)
A-4CW58
5" (118.5 mm)
6" (143.5 mm)
A-4CW78
6" (145 mm)
7" (170 mm)
Specifications:
Spacing
Weight
Min
Max
Max Capacity
Thread
A-4CW34
Ø1" (Ø34 mm)
Ø4" (Ø94 mm)
Ø0.39" (Ø10 mm)
m8x1.25 m10x1.5
11 LBS (4.8 kg)
A-4CW42
Ø2" (Ø42 mm)
Ø4" (Ø114 mm)
Ø1" (Ø15 mm)
14 LBS (6.3 kg)
A-4CW48
Ø2" (Ø48 mm)
Ø5" (Ø132 mm)
Ø1" (Ø20 mm)
17 LBS (7.7 kg)
A-4CW58
Ø2" (Ø58 mm)
Ø6" (Ø158 mm)
Ø1" (Ø30 mm)
23 LBS (10.4 kg)
A-4CW78
Ø3" (Ø78 mm)
Ø8 (Ø206 mm)
Ø2" (Ø50 mm)
43 LBS (19.5 kg)
