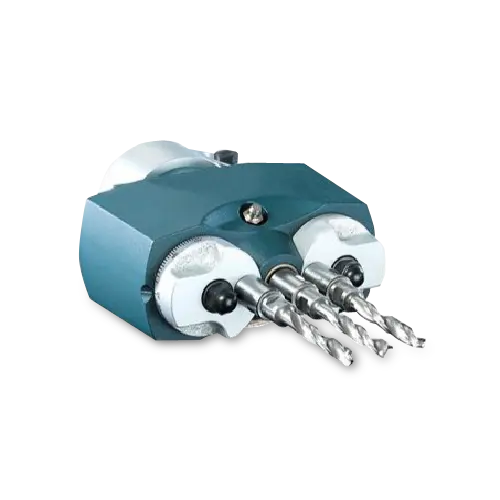

Castaly Multiple Boring Head A-3CW Series
Have one to sell?
ConditionNew
New
Castaly Multiple Boring Head A-3CW Series features graduation adjustment for boring fixed distance holes on a line.
Features:
Adjustable spacing between spindle: 0.55"~7.87" (14~200 mm).
Great drilling capacity for wood Ø0.39"~Ø2" (Ø10~Ø50 mm).
The boring head accommodates high running speeds up to 5500 RPM.
Exclusively designed with arc theorem.
Graduation adjustment for boring fixed distance holes on a line.
Ideal for application for general furniture, assembly toys, etc.
Suited for fitting on general boring machines.
Specifications:
Dimensions
A
B
C
D
E
F
G
A-3CW14
0.39" (10 mm)
0.39" (10 mm)
1" (28 mm)
2" (55 mm)
5" (121 mm)
2" (58 mm)
0.12" (3 mm)
A-3CW20
6" (150 mm)
3" (71 mm)
A-3CW22
6" (162 mm)
3" (76 mm)
A-3CW26
8" (191 mm)
4" (92 mm)
A-3CW36
3" (72 mm)
10" (251 mm)
4" (114 mm)
Specifications:
Dimensions
H
L1
L
X
Y
A-3CW14
1" (18 mm)
4" (107 mm)
5" (132 mm)
2" (40 mm)
3" (73.8 mm)
A-3CW20
1" (17 mm)
4" (112 mm)
5" (137 mm)
2" (46 mm)
4" (88.8 mm)
A-3CW22
4" (114 mm)
5" (139 mm)
A-3CW26
1" (15 mm)
5" (118.5 mm)
6" (143.5 mm)
A-3CW36
6" (141 mm)
7" (166 mm)
3" (70.7 mm)
3" (70.7 mm)
Specifications:
Spacing
Weight
Min
Max
Max Capacity
Thread
A-3CW14
1" (14 mm)
3" (88 mm)
Ø0.39" (Ø10 mm)
m8x1.25 m10x1.5
6 LBS (2.7 kg)
A-3CW20
1" (20 mm)
4" (112 mm)
Ø1" (Ø15 mm)
9 LBS (4 kg)
A-3CW22
1" (22 mm)
5" (128 mm)
Ø1" (Ø20 mm)
11 LBS (4.8 kg)
A-3CW26
1" (26 mm)
6" (152 mm)
Ø1" (Ø30 mm)
16 LBS (7.2 kg)
A-3CW36
1" (36 mm)
8" (200 mm)
Ø2" (Ø50 mm)
28 LBS (12.8 kg)
