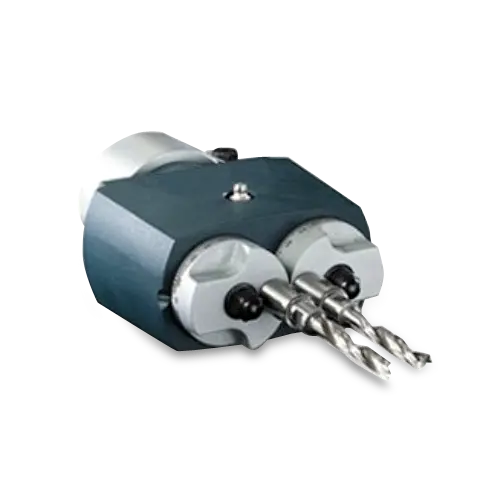

Castaly Multiple Boring Head A-2CW Series
Have one to sell?
ConditionNew
New
Castaly Multiple Boring Head A-2CW Series features graduation adjustment for the desired size between two spindles.
Features:
Adjustable spacing between spindle: 0.53"~6.46" (13.5~164 mm).
Great drilling capacity for wood Ø0.39"~Ø2" (Ø10~Ø50 mm).
The boring head accommodates high running speeds up to 5500 RPM.
Exclusively designed with arc theorem.
Graduation adjustment for the desired size between two spindles.
Ideal for application for general home products, assembly toys, etc.
Suited for fitting on general boring machines.
Specifications:
Dimensions
A
B
C
D
E
F
A-2CW13
0.39" (10 mm)
0.39" (10 mm)
1." (28 mm)
2" (55 mm)
4" (106.5 mm)
2" (57 mm)
A-2CW18
5" (127.5 mm)
3" (67 mm)
A-2CW19
5" (127.5 mm)
3" (67 mm)
A-2CW22
6" (143 mm)
3" (82 mm)
A-2CW25
8" (191 mm)
4" (109 mm)
A-2CW26
7" (166 mm)
4" (92 mm)
A-2CW36
8" (211 mm)
4" (114 mm)
A-2CW254
8" (191 mm)
4" (109 mm)
Specifications:
Dimensions
G
H
L1
L
X
Y
A-2CW13
0.12" (3 mm)
1" (15 mm)
5" (115 mm)
6" (140.5 mm)
2" (40 mm)
3" (73.8 mm)
A-2CW18
4" (112 mm)
5" (137 mm)
2" (46 mm)
4" (88.8 mm)
A-2CW19
4" (112 mm)
5" (137 mm)
A-2CW22
4" (114 mm)
5" (139 mm)
A-2CW25
1" (16 mm)
5" (120 mm)
6" (145 mm)
3" (70.7 mm)
3" (70.7 mm)
A-2CW26
5" (120 mm)
6" (145 mm)
2" (46 mm)
4" (88.8 mm)
A-2CW36
5" (138 mm)
6" (163 mm)
3" (70.7 mm)
3" (70.7 mm)
A-2CW254
0.59" (15 mm)
5" (120 mm)
6" (145 mm)
3" (70.7 mm)
3" (70.7 mm)
Specifications:
Spacing
Weight
Min
Max
Max Capacity
Thread
A-2CW13
1" (13.5 mm)
3" (73.5 mm)
Ø0.39" (Ø10 mm)
m8x1.25
6 LBS (2.7 kg)
A-2CW18
1" (18 mm)
4" (90 mm)
Ø1" (Ø15 mm)
m8x1.25 m10x1.5
7.72 LBS (3.5 kg)
A-2CW19
¾"
3½"
Ø 5/8"
7/16"x14
7.94 (3.6 kg)
A-2CW22
1" (22 mm)
4" (106 mm)
Ø1" (Ø20 mm)
m8x1.25 m10x1.5
9.26 LBS (4.2 kg)
A-2CW25
1" (25 mm)
6" (151 mm)
Ø1" (Ø15 mm)
m8x1.25 m10x1.5
16.32 LBS (7.4 kg)
A-2CW26
1" (26 mm)
5" (126 mm)
Ø1" (Ø30 mm)
m8x1.25 m10x1.5
12.79 LBS (5.8 kg)
A-2CW36
2" (36 mm)
6" (164 mm)
Ø2" (Ø50 mm)
m8x1.25 m10x1.5
22.05 LBS (10 kg)
A-2CW254
1" (25.4 mm)
5¾"
Ø 5/8"
7/16"x14
16.32 LBS (7.4 kg)
