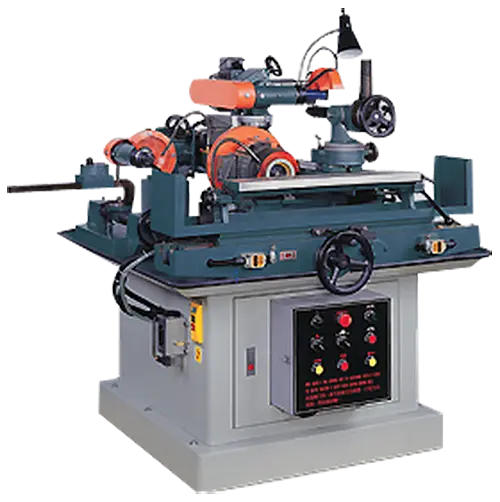

<p>Castaly Universal Knife Grinder TG-8000U combines cutter grinding, circular saw blade grinding with straight knife grinding operations into one unit.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li class="simple-check-list">Combines cutter grinding, circular saw blade grinding with straight knife grinding operations into one unit. Each grinding system is separate to save working space. It is a perfect machine that is very well-suited to woodworking factories.</li>
<li class="simple-check-list">Universal design for grinding or reshaping all kinds of shaper cutters such as finger jointer, profile, milling, reversible bevel tenon, moulder.</li>
<li class="simple-check-list">Also suitable for router bits and straight knives and circle saw blades.</li>
<li class="simple-check-list">Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately. Grinding for conventional knives with large volume and full of variety.</li>
<li class="simple-check-list">High precision and durability.</li>
<li class="simple-check-list">Heavy sheet metal cabinet stand and cast-iron body.</li>
</ul>
<p> </p>
<div>
<table>
<tbody>
<tr>
<td colspan="2">
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td rowspan="4">
<p>Grinding Capacity</p>
</td>
<td>
<p>Cutter (Dia. x W)</p>
</td>
<td style="text-align: center;">
<p>φ8" (203 mm) x 8" (200 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Carbide Saw (Dia. x T)</p>
</td>
<td style="text-align: center;">
<p>φ3" (76 mm) x 24" (600 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Carbide Saw (Dia. x T)</p>
</td>
<td style="text-align: center;">
<p>24" x 3" x 1" (610 x 76 x 16 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Router Bits (Shank)</p>
</td>
<td style="text-align: center;">
<p>½" (13 mm)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Grinding Wheel Speed</p>
</td>
<td style="text-align: center;">
<p>3400 RPM</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Grinding Wheel Motor</p>
</td>
<td style="text-align: center;">
<p>3 HP</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Coolant Pump Motor</p>
</td>
<td style="text-align: center;">
<p>1/8 HP</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Machine Size</p>
</td>
<td style="text-align: center;">
<p>47" x 47" x 57" (1200 x 1200 x 1450 mm)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Packing Size</p>
</td>
<td style="text-align: center;">
<p>59" x 59" x 61" (1500 x 1500 x 1550 mm)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>N.W.</p>
</td>
<td style="text-align: center;">
<p>1654 LBS (750 kg)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>G.W.</p>
</td>
<td style="text-align: center;">
<p>1808 LBS (820 kg)</p>
</td>
</tr>
</tbody>
</table>
</div>
<p> </p>
