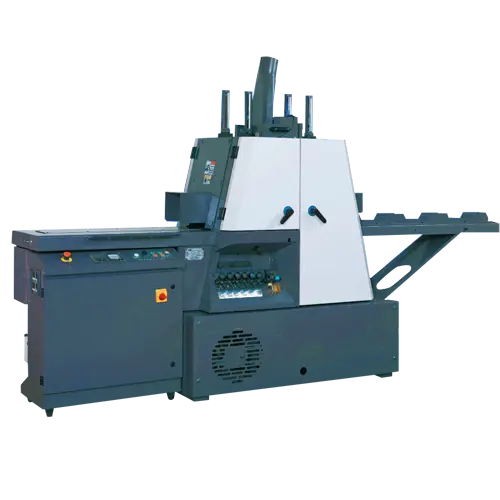

<p>Castaly TRS-150F Frame Saw features an extremely fine surface effect after cutting.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li>Minimum kerf multi blade frame saw designed to maximize production and minimize material loss.</li>
<li>Thin frame saw design accepts different saw frames & blade combinations.</li>
<li>Unique design allows multiple saw fence configurations to produce single, double or multiple cuts in a single pass.</li>
<li>Machine supplied with PLC controller to allow operator to maximize saw production & minimize down time.</li>
<li>Production times are reduced because of the machine's durability to consistently produce.</li>
<li>Saw is engineered and designed to make extremely accurate cuts, cutting products with very tight tolerances up to 0.004” and eliminating the sanding before proceeding to the next step in production.</li>
<li>All controls are centrally located to permit operator to easily adjust & maintain the machine.</li>
<li>Material waste reductions of up to 20% are achievable by use of the thin kerf blades (0.043” ~ 0.055”).</li>
<li>The rigid saw blades frame is available in different configurations.</li>
<li>A special air blast system that cools the blade for longer service intervals & removes saw dust from the gullet of the blade for reduced temperature and increases blade life.</li>
</ul>
<p> </p>
<table border="BOLD" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="165" height="17"><strong>SPECIFICATIONS:</strong></td>
<td width="166">
<div align="center"> </div>
</td>
</tr>
<tr>
<td height="17">Working Width</td>
<td>
<div align="center">0.75" ~ 6"</div>
</td>
</tr>
<tr>
<td height="17">Working Height</td>
<td>
<div align="center">1.25" ~ 10"</div>
</td>
</tr>
<tr>
<td height="17">Finish Material Thickness</td>
<td>
<div align="center">> 0.094"</div>
</td>
</tr>
<tr>
<td height="17">Thickness of Saw Blade</td>
<td>
<div align="center">0.043" ~ 0.055"</div>
</td>
</tr>
<tr>
<td height="17">Max. No of Saw Blade</td>
<td>
<div align="center">22 PCS</div>
</td>
</tr>
<tr>
<td height="17">Saw Blade Cutting Cycle</td>
<td>
<div align="center">450/Min</div>
</td>
</tr>
<tr>
<td height="17">Stroke</td>
<td>
<div align="center">8.25"</div>
</td>
</tr>
<tr>
<td height="17">Saw Blade Size</td>
<td>
<div align="center">1.575" W x 19.685" L</div>
</td>
</tr>
<tr>
<td height="17">Main Motor</td>
<td>
<div align="center">20 HP</div>
</td>
</tr>
<tr>
<td height="17">Feed Motor</td>
<td>
<div align="center">1 HP</div>
</td>
</tr>
<tr>
<td height="17">Feed Speed</td>
<td>
<div align="center">1 ~ 5 FPM</div>
</td>
</tr>
<tr>
<td height="17">Air Pressure</td>
<td>
<div align="center">90 PSI</div>
</td>
</tr>
<tr>
<td height="17">Lubrication System</td>
<td>
<div align="center">Auto Oil Lubrication</div>
</td>
</tr>
<tr>
<td height="17">Cooling System</td>
<td>
<div align="center">Water & Air</div>
</td>
</tr>
<tr>
<td height="17">Machine Size</td>
<td>
<div align="center">142" x 32" x 75"</div>
</td>
</tr>
<tr>
<td height="17">G.W.</td>
<td>
<div align="center">5800 LBS</div>
</td>
</tr>
<tr>
<td height="17">N.W.</td>
<td>
<div align="center">5070 LBS</div>
</td>
</tr>
</tbody>
</table>
