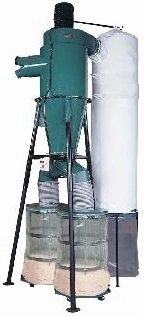

<p>Castaly 5 HP Two-Stage Dust Collector DC-05STA is excellent in separating the heavy particles from the fine particles before they pass through the impeller.</p>
<h3>Features:</h3>
<ul class="dotted-list">
<li class="simple-check-list">Heavy sheet metal frame and base.</li>
<li class="simple-check-list">Extra large radial-fin type steel impeller for high efficiency air flow.</li>
<li class="simple-check-list">Heavy duty, totally enclosed industrial motor for maximum air suction and extended service life.</li>
<li class="simple-check-list">Quick release clamps are used to tighten the bags; this helps to reduce the down time when doing maintenance.</li>
<li class="simple-check-list">Low sound levels to keep the working area quiet.</li>
<li class="simple-check-list">New designed two stage cyclones. As the “dirty” air stream enters the collector, the heavy particles are separated by cyclonic action and fall to the bottom storage bag. Then the remaining air stream with fine dust goes through the impeller, it can increase dramatically the life of the impeller & motor preventing damage from large material.</li>
<li class="simple-check-list">Wheel caster at bottom of drum base for portability.<br></li>
</ul>
<p> </p>
<div>
<table>
<tbody>
<tr>
<td>
<h4><strong>Specifications:</strong></h4>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p>Motor</p>
</td>
<td style="text-align: center;">
<p>5 HP / 60Hz</p>
</td>
</tr>
<tr>
<td>
<p>Air Suction Capacity W/O Bag</p>
</td>
<td style="text-align: center;">
<p>2500 CFM</p>
</td>
</tr>
<tr>
<td>
<p>Static Pressure</p>
</td>
<td style="text-align: center;">
<p>16 InH2O</p>
</td>
</tr>
<tr>
<td>
<p>Inlet Diameter</p>
</td>
<td style="text-align: center;">
<p>10" x 4" x 4</p>
</td>
</tr>
<tr>
<td>
<p>Bag Diameter</p>
</td>
<td style="text-align: center;">
<p>23 5/8"</p>
</td>
</tr>
<tr>
<td>
<p>Number of Drums</p>
</td>
<td style="text-align: center;">
<p>1</p>
</td>
</tr>
<tr>
<td>
<p>Sound Rating (Noise)</p>
</td>
<td style="text-align: center;">
<p>75 ~ 85 db</p>
</td>
</tr>
<tr>
<td>
<p>Overall Dimension</p>
</td>
<td style="text-align: center;">
<p>71" x 49" x 135" (1800 x 1250 x 3425 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Packing Size</p>
</td>
<td style="text-align: center;">
<p>53" x 49" x 35" (1350 x 1240 x 880 mm)</p>
</td>
</tr>
<tr>
<td>
<p>N. W. / G. W. / CUFT</p>
</td>
<td style="text-align: center;">
<p>295 LBS (134 kg)/406 LBS (184 kg)/ 52'</p>
</td>
</tr>
</tbody>
</table>
</div>
