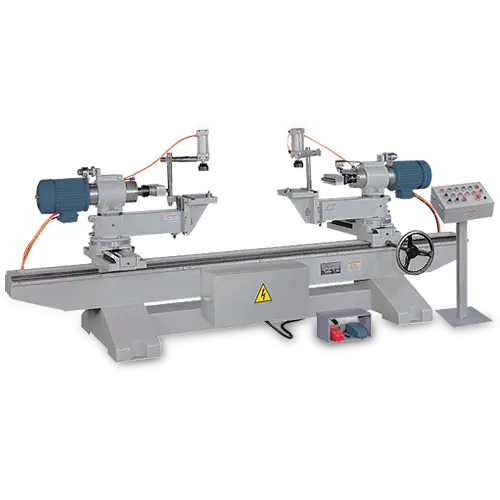

Castaly 2-Head Stile Boring Machine BR-211
Have one to sell?
ConditionNew
New
Castaly 2-Head Stile Boring Machine BR-211 is designed with automatic clamping and boring capacity for high-efficiency operations.
Features:
Suitable and affordable for industrial and small workshop use.
Capable of using "multiple drill heads."
Pneumatic clamp and drill head travel.
Operated by foot pedal, hands free.
360-degree horizontally swiveling head design allows for side or angular boring by any boring direction.
Working length is easily adjusted through a hand wheel.
Easy adjustment for length and depth of boring.
Easy to operate by simple step on a foot switch air-hydraulic combination system for drill feed movement to afford smooth motions.
Front mounted, centralized control panel.
The unit is directly driven with a 3 HP motor for non-power loss transmission.
The table can be adjusted up and down, and micro adjustment of the spindle allows for accurate position.
The distance between drills depends on the gear head is adjustable to meet drilling variations.
Cast iron base and table for durable usage.
Additional drill heads can be added for specialized applications.
OPTIONAL Multiple Drill Head.
SPECIFICATIONS:
Motor (3 PH) 220/440V
3 HP x 2
Drill Speed (RPM)
3450
Drill Bit Type
7/16" x 14UNC
Spindle Stroke (Max)
4"
Table Size (W x L)
6" x 6" x 2
Max. Working Length
49"
Drill Chuck
No
Multi Drill Head Available
Yes
Air Clamp
2
Standard Spindle
(A5L32) X 2
Max Spindle
Optional
Min. Drill Dist. (Chuck Type)
Var.
N.W.
1320 LBS
G.W.
1600 LBS
