<p>Clamp Together Ducting is applicable in virtually any dust collection system from wood to paper to chemical. It is also used in fume and oil mist collection. Even abrasive applications can be accommodated. The standard K&B Clamp Together/Quick Clamp Duct branches and fittings are fabricated from 18-gauge material as a standard and can be fabricated in up to 10-gauge. Likewise, elbows and duct can also be fabricated in 10-gauge for use in such applications as sand, coal or other abrasive applications.</p>

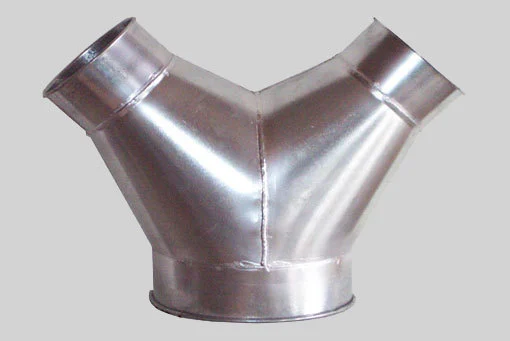

<p>18 ga. (The taper is lapped spot welded and caulked. The halves are then full welded together.) The 2.5” collar is applied as standard. Length of Y branch varies based upon the various dimensions.</p>
<p><strong>REMEMBER</strong>, that length is not important in designing because of the adjustability of the system. IE the cut pipe can slide into the collar to adjust the length.</p>
<p>Angle rings or anges can be applied to the transitions and adapters to mate with existing duct, or they can be made with raw ends sized to specific dimensions.</p>
<p>Heavier gauges are available.</p>
