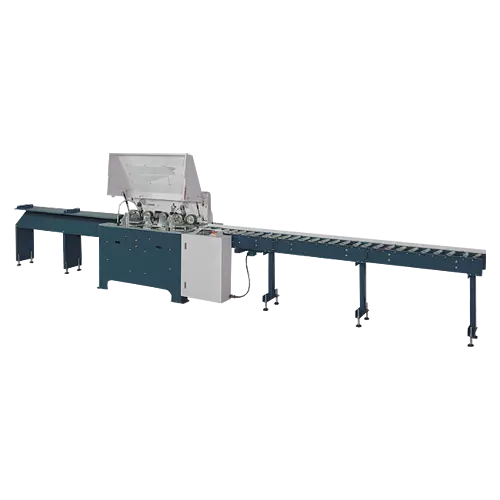

<p>The Castaly Feed Through Auto End Matcher SFJ-250A performs end tenoning, mortising, and shaping at both ends of sticks.</p>
<h3>Features:</h3>
<div>
<ul>
<li>PLC control combined with touch-sensing screen for maximum convenience of operation.</li>
<li>Each cutter head is driven by an independent powerful motor.</li>
<li>7500 RPM spindle speed.</li>
<li>Unlimited wood length.</li>
<li>Auto conveyor for in feed and out feed processes.</li>
<li>Cutter feed is controlled by a frequency inverter that permits variable speed changes to suit various cutting conditions.</li>
<li>Pressure plates are actuated by air cylinders.</li>
<li>Hard chrome-plated table features maximum wear resistance.</li>
<li>Table rollers increase feed smoothness.</li>
<li>Powered in feed roller conveyor is driven by a 1 HP motor.</li>
<li>3400 mm in feed roller conveyor and 2200mm out feed conveyor table are standard equipment.</li>
<li>Fully enclosed splash guard.</li>
<li>Air-operated clamp comes down holding sticks firmly in place. After workpiece is clamped, cutter head moves in and performs shaping operation.</li>
<li>The shaper spindle is precision constructed for cutting finger shapes accurately and accommodates a maximum cutter diameter of up to 6”.</li>
<li>The spindle height adjustment is displayed on a dial gauge. </li>
</ul>
<p> </p>
<table style="width: 587px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="top" width="215">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td valign="top" width="168"> </td>
</tr>
<tr>
<td valign="top" width="215">
<p>Working Width</p>
</td>
<td valign="top" width="168">
<p align="center">1-1/2" ~ 10"</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Working Thickness</p>
</td>
<td valign="top" width="168">
<p align="center">3/8" ~ 1 3/8"</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Min. Working Length</p>
</td>
<td valign="top" width="168">
<p align="center">10-1/2"</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Max. Working Length</p>
</td>
<td valign="top" width="168">
<p align="center">Unlimited</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Feed Speed (Variable)</p>
</td>
<td valign="top" width="168">
<p align="center">297 FPM</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Cutting Speed</p>
</td>
<td valign="top" width="168">
<p align="center">79 FPM</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Cutter Motor</p>
</td>
<td valign="top" width="168">
<p align="center">5 1/2 HP x 2</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Feed Motor</p>
</td>
<td valign="top" width="168">
<p align="center">1 HP</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Cutter Movement Motor</p>
</td>
<td valign="top" width="168">
<p align="center">1/2 HP</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Cutter Spindle Diameter</p>
</td>
<td valign="top" width="168">
<p align="center">40 mm</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Air Requirement</p>
</td>
<td valign="top" width="168">
<p align="center">12 CFM</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Machine Size (W x L x H)</p>
</td>
<td valign="top" width="168">
<p align="center">51" x 90" x 62"</p>
</td>
</tr>
<tr>
<td valign="top" width="215">
<p>Machine Weight</p>
</td>
<td valign="top" width="168">
<p align="center">2310 LBS</p>
</td>
</tr>
</tbody>
</table>
