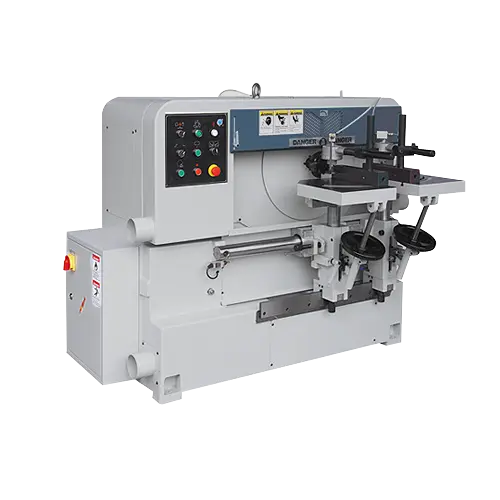

<p>Castaly SET-100 Auto Double Table End Tenoner is built with two working tables for high efficiency operations. </p>
<h3><strong class="simple-check-list">Features:</strong></h3>
<ul class="dotted-list">
<li class="simple-check-list">Table longitudinal traverse is pneumatically operated for smooth cutting.</li>
<li class="simple-check-list">Tenon’s width is easily adjustable by hand wheel.</li>
<li class="simple-check-list">Convenient tenon depth adjustment from outside without removing covers.</li>
<li class="simple-check-list">Table can be tilted to 20 degrees at each side for angular tenon.</li>
<li class="simple-check-list">Cutter moving speed is infinitely adjustable to achieve the best results.</li>
<li class="simple-check-list">Pneumatic hold down clamps and pneumatic cutting movement for smooth finish.</li>
<li class="simple-check-list">Fully automatic tenon produce cycles.</li>
<li class="simple-check-list">Automatic lubrication system.</li>
<li class="simple-check-list">Powerful industrial motor for maximum cutting capacity.</li>
<li class="simple-check-list">Precision sealed long-life bearing.</li>
<li class="simple-check-list">Heavy cast iron frames and table for durability usage.</li>
</ul>
<p> </p>
<div>
<table style="width: 563px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="227">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="154"> </td>
</tr>
<tr>
<td width="227">
<p>Max. Width of Tenon (Mortise)</p>
</td>
<td width="154">
<p align="center">4"</p>
</td>
</tr>
<tr>
<td width="227">
<p>Max. Depth of Tenon (Mortise)</p>
</td>
<td width="154">
<p align="center">2"</p>
</td>
</tr>
<tr>
<td width="227">
<p>Oscillation Rate </p>
</td>
<td width="154">
<p align="center">13 ~ 80 PCS/MIN.</p>
</td>
</tr>
<tr>
<td width="227">
<p>Table Tilts</p>
</td>
<td width="154">
<p align="center">20°</p>
</td>
</tr>
<tr>
<td width="227">
<p>Spindle Drive Motor</p>
</td>
<td width="154">
<p align="center">3 HP</p>
</td>
</tr>
<tr>
<td width="227">
<p>Cutter Feed Motor</p>
</td>
<td width="154">
<p align="center">1 HP</p>
</td>
</tr>
<tr>
<td width="227">
<p>Cutter Speed </p>
</td>
<td width="154">
<p align="center">9500 RPM</p>
</td>
</tr>
<tr>
<td width="227">
<p>Table Vertical Adjustment</p>
</td>
<td width="154">
<p align="center">3"</p>
</td>
</tr>
<tr>
<td width="227">
<p>Max. Thickness</p>
</td>
<td width="154">
<p align="center">4"</p>
</td>
</tr>
<tr>
<td width="227">
<p>Max. Stoke Width</p>
</td>
<td width="154">
<p align="center">5"</p>
</td>
</tr>
<tr>
<td width="227">
<p>Air Pressure</p>
</td>
<td width="154">
<p align="center">80 PSI</p>
</td>
</tr>
<tr>
<td width="227">
<p>Machine Size</p>
</td>
<td width="154">
<p align="center">63" x 51" x 51"</p>
</td>
</tr>
<tr>
<td width="227">
<p>N.W.</p>
</td>
<td width="154">
<p align="center">2200 LBS</p>
</td>
</tr>
<tr>
<td width="227">
<p>G.W.</p>
</td>
<td width="154">
<p align="center">2640 LBS</p>
</td>
</tr>
</tbody>
</table>
