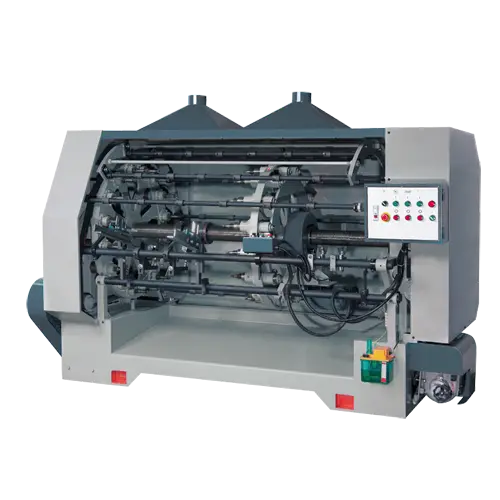

<p>Castaly 48" Auto Spindle Sander CL-1248HS allows the workpiece to be clamped and discharged automatically during the sanding operation.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li class="simple-check-list">The workpiece is clamped & discharged automatically during the sanding operation.</li>
<li class="simple-check-list">Adopts the variable speed selections, can increase the productivity and adjusts easily and quickly when the workpieces size are changed.</li>
<li class="simple-check-list">The sanding operation adopts the enclosed cover for dust collection so not to effect the air pollution.</li>
<li class="simple-check-list">Equipped with the auto feed hopper for mass production.</li>
<li class="simple-check-list">Newly developed extra sanding wheels polish the deeper grooves completely, but also polish the first coating on wood bar.</li>
<li class="simple-check-list">Especially suitable for heavy-duty sanding, easy to install the sandpaper for sanding the concave and wave pattern workpiece perfectly.</li>
<li class="simple-check-list">Easy to operate, low maintenance cost and saves labor.</li>
<li class="simple-check-list">Revolving drum & fixed drum made of high quality cast icon, annealing heat-treated to ensure centering accuracy after years of operation.</li>
<li class="simple-check-list">A back plate provides backup support of quill, preventing the turning pieces to fly out.</li>
<li class="simple-check-list">The spindle bearings are protected with seal to prevent sand dust entering.</li>
<li class="simple-check-list">Spring-loaded tail quill is hard chrome-plated for wear resistance and provides years of accuracy.</li>
<li class="simple-check-list">The speed of the drum, sanding paper oscillation, working spindle and sanding wheel spindle are achieved through a high performance variable speed driver.</li>
<li class="simple-check-list">Any type of workpiece material of profile variation can be sanded with maximum uniformity and smoothness.</li>
<li class="simple-check-list">An additional support is built for the moving drum not only giving solid support for the moving drum, but also maximum operation stability, it also provides convenient length setting for various workpieces.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td class="xl27" width="151" height="17"><strong>SPECIFICATIONS:</strong></td>
<td class="xl24" width="163"> </td>
</tr>
<tr>
<td class="xl25" height="17">Max. Working Length</td>
<td class="xl26"><center>7/8" ~ 48"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max. Working Dia.</td>
<td class="xl26"><center>3/8" ~ 4"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Working Speed</td>
<td class="xl26"><center>3 ~ 18 PCS/MIN</center></td>
</tr>
<tr>
<td class="xl25" height="17">Main Spindle Speed</td>
<td class="xl26"><center>0 ~ 4200 RPM (VAR)</center></td>
</tr>
<tr>
<td class="xl25" height="17">Workpiece Spindle</td>
<td class="xl26"><center>16</center></td>
</tr>
<tr>
<td class="xl25" height="17">Spindle Motor</td>
<td class="xl26"><center>7½ HP</center></td>
</tr>
<tr>
<td class="xl25" height="17">Brush Wheel Motor</td>
<td class="xl26"><center>1 HP</center></td>
</tr>
<tr>
<td class="xl25" height="17">Drum Slide Motor</td>
<td class="xl26"><center>½ HP</center></td>
</tr>
<tr>
<td class="xl25" height="17">Revolving Drum Motor</td>
<td class="xl26"><center>1 HP</center></td>
</tr>
<tr>
<td class="xl25" height="17">N.W.</td>
<td class="xl26"><center>2640 LBS</center></td>
</tr>
<tr>
<td class="xl25" height="17">G.W.</td>
<td class="xl26"><center>3300 LBS</center></td>
</tr>
</tbody>
</table>
