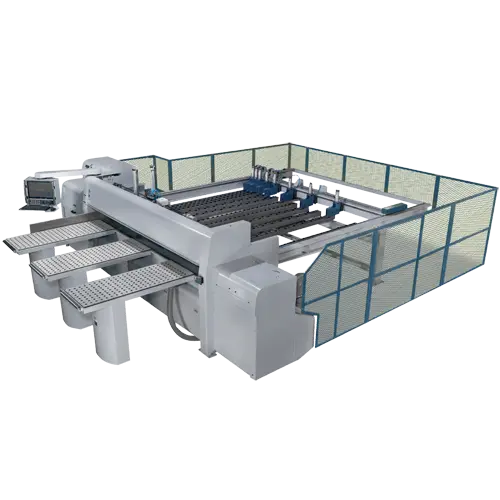

<p>Castaly TS-P330D/ 380D Heavy Duty Beam Saw has a base welded from cold rolling steel plate; offering rugged construction.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li class="simple-check-list">Cutting large panels quickly and efficiently is a necessity in today’s competitive markets.</li>
<li class="simple-check-list">The computer panel saw promises dramatic productivity gains with this features: advanced computer control, high efficiency automatic gripper feed system, reduced cycle time, and prefect square cutting accuracy, all at an economical price.</li>
<li class="simple-check-list">Great select memory capacity permitting for single or multiple sizes at groups of quantity cutting.</li>
<li class="simple-check-list">Employed with touch control screen for convenient operations, eliminating the problem of dust contamination.</li>
<li class="simple-check-list">Featuring a self diagnostic function, provide with comprehensive probable cause of trouble and detailed trouble shooting guide, allowing the operator to correct problems easily.</li>
<li class="simple-check-list">Superior software system is designed for human and machine interface.</li>
<li class="simple-check-list">The base is welded from cold rolling steel plate, offers rugged construction.</li>
<li class="simple-check-list">Automatic saw stroke enable to only cutting the panel actuary length and return right away, this reduce considerable cycle time.</li>
<li class="simple-check-list">The saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate concentricity producing fine smooth surface cut.</li>
<li class="simple-check-list">The guide rods, hard chrome plated, provide rigid support for saw carriage. The ripping accuracy is guaranteed.</li>
<li class="simple-check-list">The machine employs an advanced, high performance limit switch, its highly sensitive performance ensures extremely accurate saw stroke control.</li>
<li class="simple-check-list">The saw carriage feed is driven by rugged wire.</li>
<li class="simple-check-list">The scoring blade may be laterally adjusted for a burr free cut or vertically adjusted for proper depth of cut and to compensate for blade wear.</li>
<li class="simple-check-list">The Table surfaces are covered with bakelite to prevent scratching of the panel during feeding.</li>
<li class="simple-check-list">Panels feed through the linear motion guide for greater accuracy and less effort.</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td colspan="2">
<p><strong>Specifications:</strong></p>
</td>
<td>
<p>TS-P330D</p>
</td>
<td>
<p>TS-P380D</p>
</td>
</tr>
<tr>
<td rowspan="3">
<p><strong>Capacity</strong></p>
</td>
<td>
<p>Max. Cutting Length</p>
</td>
<td>
<p>126" (3200 mm)</p>
</td>
<td>
<p>150" (3800 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Max. Cutting Width</p>
</td>
<td colspan="2">
<p>126" (3200 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Max. Cutting Height</p>
</td>
<td colspan="2">
<p>0~4",Optional:5" (0-100 (Optional:120 mm))</p>
</td>
</tr>
<tr>
<td rowspan="3">
<p><strong>Main Sawblade</strong></p>
</td>
<td>
<p>Diameter</p>
</td>
<td colspan="2">
<p>Ø16" (Ø18") (Ø405mm (Ø455 mm))</p>
</td>
</tr>
<tr>
<td>
<p>Arbor Diameter</p>
</td>
<td colspan="2">
<p>Ø2" (Ø60 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Speed</p>
</td>
<td colspan="2">
<p>3910 RPM</p>
</td>
</tr>
<tr>
<td rowspan="3">
<p><strong>Scoring Sawblade</strong></p>
</td>
<td>
<p>Diameter</p>
</td>
<td colspan="2">
<p>Ø7" (Ø180 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Arbor Diameter</p>
</td>
<td colspan="2">
<p>Ø2" (Ø45 mm)</p>
</td>
</tr>
<tr>
<td>
<p>Speed</p>
</td>
<td colspan="2">
<p>5100 RPM</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p><strong>Saw Carriage</strong></p>
</td>
<td>
<p>Forward Speed</p>
</td>
<td colspan="2">
<p>5 ~ 100 M/ min</p>
</td>
</tr>
<tr>
<td>
<p>Return Speed</p>
</td>
<td colspan="2">
<p>120 M/ min</p>
</td>
</tr>
<tr>
<td rowspan="5">
<p><strong>Motor</strong></p>
</td>
<td>
<p>Main Sawblade Motor</p>
</td>
<td colspan="2">
<p>20 HP (Optional:25 HP)</p>
</td>
</tr>
<tr>
<td>
<p>Scoring Sawblade Motor</p>
</td>
<td colspan="2">
<p>3 HP</p>
</td>
</tr>
<tr>
<td>
<p>Saw Carriage Drive Motor</p>
</td>
<td colspan="2">
<p>1 KW</p>
</td>
</tr>
<tr>
<td>
<p>Floating Table Motor</p>
</td>
<td colspan="2">
<p>3 HP</p>
</td>
</tr>
<tr>
<td>
<p>Automatic Feed Motor</p>
</td>
<td colspan="2">
<p>2 KW (AC Servo Motor)</p>
</td>
</tr>
<tr>
<td rowspan="3">
<p><strong>Other</strong></p>
</td>
<td>
<p>Pusher Feed Speed</p>
</td>
<td colspan="2">
<p>5 ~ 80 M/ min</p>
</td>
</tr>
<tr>
<td>
<p>Working Air Pressure</p>
</td>
<td colspan="2">
<p>7 kg/cm²</p>
</td>
</tr>
<tr>
<td>
<p>Table Height from Floor</p>
</td>
<td colspan="2">
<p>37" (950 mm)</p>
</td>
</tr>
</tbody>
