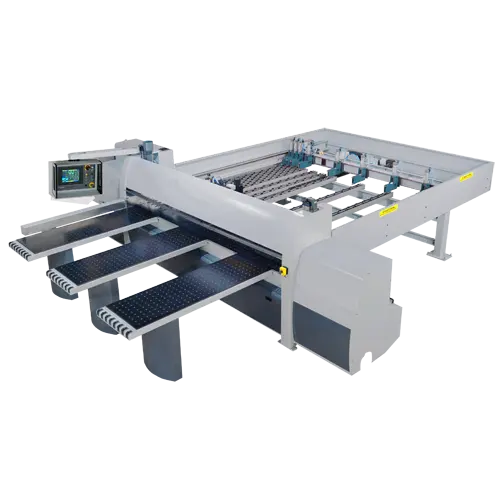

Castaly 10' CNC Gripper Panel Beam Saw TS-P330
Have one to sell?
ConditionNew
New
Castaly TS-P330 10' CNC Gripper Panel Beam Saw allows panels to feed through the linear motion guide for greater accuracy and less effort. This feature included in all Castaly panel saw options.
Features:
Cutting large panels quickly and efficiently is a necessity in today’s competitive markets.
The computer panel saw with gripper will bring you the capacity to cut panels quickly, easily and accurately.
The computer panel saw promises dramatic productivity gains with these features: advanced computer control, high efficiency automatic gripper feed system, reduced cycle time, and perfect square cutting accuracy, all at an economical price.
The automatic gripper feed system is driven by a super performance 800W AC servo motor for accurate within 0.001" and 16 ~ 130 FPM high feeding performance.
Great select memory capacity permitting for single or multiple sizes at groups of quantity cutting.
The controller can be ON-LINED at office with a personal computer through a RS-232 interface to download cutting information. Also, the setting data can be printed out.
Employed with touch control screen for convenient operations, eliminating the problem of dust contamination.
Featuring a self diagnostic function, provided with comprehensive probable cause of trouble and detailed trouble shooting guide, allowing the operator to correct problems easily.
Superior software system is designed for human and machine interface.
The base is welded from cold rolling steel plate, offers rugged construction.
Automatic saw stroke enables to only cut the panel actuary length and return right away, this reduces considerable cycle time.
The saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate concentricity producing fine smooth surface cut.
The guide rods, hard chrome plated, provides rigid support for saw carriage. The ripping accuracy is guaranteed.
The machine employs an advanced, high performance limit switch, its highly sensitive performance ensures extremely accurate saw stroke control.
The saw carriage feed is driven by rugged wire.
The scoring blade may be laterally adjusted for a burr-free cut or vertically adjusted for proper depth of cut and to compensate for blade wear.
A 2 HP AC motor drives the saw carriage with variable speeds are changed by frequency control 16 ~ 100 FPM, and retract speeds is 100 FPM.
The table surfaces are covered with Bakelite to prevent scratching of the panel during feeding.
Panels feed through the linear motion guide for greater accuracy and less effort.
SPECIFICATIONS:
Maximum Length of Cut
126"
Maximum Depth of Cut
3 1/8"
Main Saw Blade Diameter
355 MM
Scoring Saw Blade Diameter
180 MM
Main Saw Blade Arbor
1"
Scoring Saw Blade Arbor
1"
Main Saw Blade Speed
4500 RPM
Scoring Saw Blade Speed
6500 RPM
Saw Carriage Feed Speed
16-100 FPM
Saw Carriage Return Speed
100 FPM
Saw Blade Drive Motor
20 HP
Saw Carriage Feed Motor
2 HP
Working Air Pressure
80 PSI
Table Height from Floor
33"
Gripper Feed Motor
800 W
Gripper Feed Speed
16-130 FPM
Gripper Retreat Speed
130 FPM
Total Grippers
5 PCS
N.W.
5720 LBS
G.W.
7050 LBS
