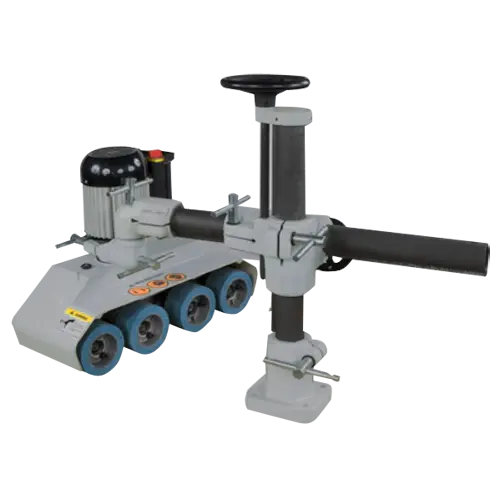

<p>Castaly ST-483FD 4 Rolls Power Feeder features powerful feeding strength, one can freely & simply assemble, dismantle & adjust it.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li class="simple-check-list">It may be installed onto the circular saw, shaper, sander, router, planer serving as one’s invisible third hand at work.<br></li>
<li class="simple-check-list">There are four (4) feed rollers on this feeder. Each roller has a suspender to hold simultaneously the work piece at different degrees of thickness. It is also used to help the feed pressure.</li>
<li class="simple-check-list">In case you need a large space between the rollers, you can take off the middle roller so the remaining rollers may be used for curve driving.</li>
<li class="simple-check-list">For spindle molder, the feeder may be adjusted to the leveling direction for side feed to meet the requirement of various processing condition.</li>
<li class="simple-check-list">There are two (2) sets of matching & interchangeable gears of variable sizes to create for stages of feeding speed.</li>
<li class="simple-check-list">Forward & reverse feeding switch.</li>
<li class="simple-check-list">Universal support stand with cast iron base, main bracket, thick refaced column and aluminum hand wheels for vertical and horizontal positioning.</li>
</ul>
<p> </p>
<div>
<table style="width: 653px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="173">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="156"> </td>
</tr>
<tr>
<td width="173">
<p>Feeding Speed (FPM)</p>
</td>
<td width="156">
<p align="center">6 ~ 102 (8S)</p>
</td>
</tr>
<tr>
<td width="173">
<p>Roller Size</p>
</td>
<td width="156">
<p align="center">4 3/4" x 2 3/8"</p>
</td>
</tr>
<tr>
<td width="173">
<p>Motor</p>
</td>
<td width="156">
<p align="center">1 HP, 1 PH, 230 V</p>
</td>
</tr>
<tr>
<td width="173">
<p>Roller Suspension</p>
</td>
<td width="156">
<p align="center">1"</p>
</td>
</tr>
<tr>
<td width="173">
<p>N.W.</p>
</td>
<td width="156">
<p align="center">160 LBS</p>
</td>
</tr>
<tr>
<td width="173">
<p>G.W.</p>
</td>
<td width="156">
<p align="center">220 LBS</p>
</td>
</tr>
</tbody>
</table>
</div>
