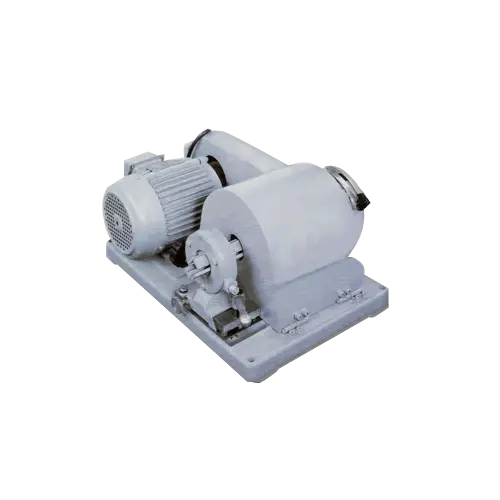

<p>Castaly DM-77 Dowel MIlling M/C mills wooden dowels from square sticks.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li class="simple-check-list">Self-feeding and easily changeable cutters.</li>
<li class="simple-check-list">Makes dowels from 6 MIM - 18 MIM (1/4" to ¾”).</li>
<li class="simple-check-list">Dowels stock cut with spiral grooves for gluing.</li>
<li class="simple-check-list">Powered by heavy-duty 1 HP motor and produce dowels at the rate of 23 to 27 feet per minute.</li>
<li class="simple-check-list">Specially designed knives make sharpening easy.</li>
</ul>
<p> </p>
<p>**To optimize production, the <a title="Dotul Dowel Driver AT-400" href="http://globalsalesgroupllc.com/machinery/dowel-machines/dowel-driver" target="_blank">Dotul Dowel Driver AT-400</a> can be used in combination with this machine.**</p>
<p> </p>
<div>
<table>
<tbody>
<tr>
<td>
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p>Diameter Range</p>
</td>
<td style="text-align: center;">
<p>1/4" ~ 3/4"</p>
</td>
</tr>
<tr>
<td>
<p>Motor</p>
</td>
<td style="text-align: center;">
<p>1 HP, 1 PH, 115V</p>
</td>
</tr>
<tr>
<td>
<p>Working Speed</p>
</td>
<td style="text-align: center;">
<p>24 ~ 28 FPM</p>
</td>
</tr>
<tr>
<td>
<p>Minimum Working Material</p>
</td>
<td style="text-align: center;">
<p>Length 8 3/4"</p>
</td>
</tr>
<tr>
<td>
<p>Packing Size</p>
</td>
<td style="text-align: center;">
<p>27" x 19" x 15"</p>
</td>
</tr>
<tr>
<td>
<p>N. W.</p>
</td>
<td style="text-align: center;">
<p>128 LBS</p>
</td>
</tr>
<tr>
<td>
<p>G. W. </p>
</td>
<td>
<p style="text-align: center;">187 LBS</p>
</td>
</tr>
</tbody>
</table>
</div>
