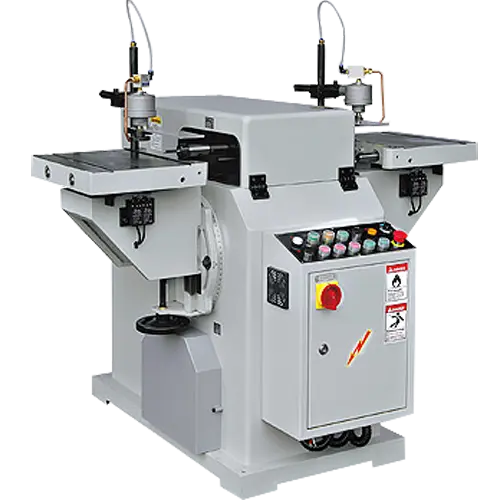

Castaly Oscillating Mortiser CM-100

<p>The Castaly Oscillating Mortiser CM-100 features two working tables built in both sides of the machine to double the production for high efficiency mortising operation.</p> <h3>Features:</h3> <ul> <li>A faster rectangular mortise machine provides variable oscillating speed at 7 ~ 200 strokes per minute.</li> <li>Pneumatic hold down clamps and pneumatic depth movement for smooth finish.</li> <li>Fully automatic mortise produce cycles simply by stepping on the foot pedal.</li> <li>Hydraulic pistons for drilling depth speed control, enable for best results.</li> <li>Width and depth of mortising is easily adjustable.</li> <li>Table can be tilted 20 degrees at each side for angular slot.</li> <li>Powerful industrial motor for maximum cutting capacity.</li> <li>Precision sealed long-life bearing.</li> <li>Heavy cast iron frames and table for durability usage.</li> </ul> <p> </p> <table style="width: 455px;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr> <td width="260"> <p><strong>SPECIFICATIONS:</strong></p> </td> <td width="195"> <p align="center"> </p> </td> </tr> <tr> <td> <p>Max. Width of Tenon (Mortise)</p> </td> <td> <p align="center">4"</p> </td> </tr> <tr> <td> <p>Max. Depth of Tenon (Mortise)</p> </td> <td> <p align="center">2 3/8"</p> </td> </tr> <tr> <td> <p>Oscillation Rate </p> </td> <td> <p align="center">7 ~ 200 STROKE/MIN.</p> </td> </tr> <tr> <td> <p>Table Tilts</p> </td> <td> <p align="center">20°</p> </td> </tr> <tr> <td> <p>Spindle Drive Motor</p> </td> <td> <p align="center">3 HP</p> </td> </tr> <tr> <td> <p>Cutter Feed Motor</p> </td> <td> <p align="center">½ HP</p> </td> </tr> <tr> <td> <p>Cutter Speed </p> </td> <td> <p align="center">9500 RPM</p> </td> </tr> <tr> <td> <p>Table Vertical Adjustment</p> </td> <td> <p align="center">3"</p> </td> </tr> <tr> <td> <p>Max. Thickness</p> </td> <td> <p align="center">4"</p> </td> </tr> <tr> <td> <p>Max. Stoke Width</p> </td> <td> <p align="center">4"</p> </td> </tr> <tr> <td> <p>Air Pressure</p> </td> <td> <p align="center">80 PSI</p> </td> </tr> <tr> <td> <p>Machine Size</p> </td> <td> <p align="center">51" x 47" x 47"</p> </td> </tr> <tr> <td> <p>N.W.</p> </td> <td> <p align="center">1540 LBS</p> </td> </tr> <tr> <td> <p>G.W.</p> </td> <td> <p align="center">1880 LBS</p> </td> </tr> </tbody> </table>
