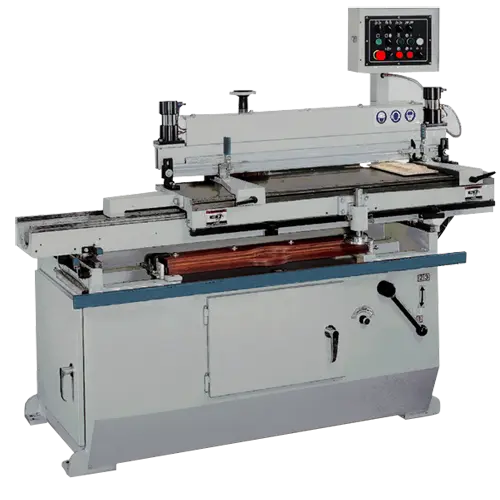

Castaly 40" Auto Raised Panel Door Shaper CS-40PAAU
Have one to sell?
ConditionNew
New
Castaly CS-40PAAU is specially designed to make all the parts for raised panel doors by one spindle shaper without changing knife (rail stile, panel) to get mass production.
Features:
It is also able to do the chair leg, furniture parts by the maximum 7" width (in and out) copy capacity.
The 6" high stackable spindle with 3 pneumatic stops are easily and accurately setup for each cutter position.
Rigid construction made by heavy sheet metal frame, cast iron table & base for durability usage.
Full power industrial motor is suitable for best cutting capacity.
Strong cutting power does not need to be precut for the arch or oval panel.
Table movements from right to left are hydraulic powered to achieve powerful cutting and adjust cutting speed variability.
Table movements in and out are pneumatic powered to follow the template sensitively and ensure the same shape was copy.
Linear guide rails and bearings let the moving table by lightweight and smoothly to get the long life usage also.
Two side cast iron fences locked in the groove to finish square cut and centering the workpiece easily.
Heavy-duty air pistons hold down the workpieces tightly without sliding during the cutting process.
Proximity switches control the cutting stroke depend by the work size for fast production and time saving.
Two separate stops work for rail, stile or panel arch cutting positions.
SPECIFICATIONS:
Max. Cutting Capacity:
Length (Left to Right)
40"
Width (In and Out)
7"
Thickness
6"
Max. Cutter Size
7"
Spindle Diameter
1¼ "
Spindle Length
6"
Spindle Speed
9000 RPM
Main Motor
10 HP
Hyd. Pump
1 HP
Dust Hood
4"
Net Weight
2310 LBS
Gross Weight
2730 LBS
