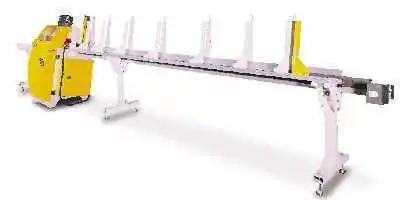

<p>Castaly Auto Push 12 Ft 18" Cut Off Saw CS-18AAT-12 is one of several options of cut off saws Castaly offers. Please review features and specifications of each to find the one that best meets your needs.</p>
<h3>Features:</h3>
<ul>
<li>18" Auto Cut-Off Saw equipped with AF-08 auto pusher fence for adding automation, efficiency and accuracy.</li>
<li>12' infeed table and 4' outfeed rollers table.</li>
<li>With programmable controller, it can act as AUTO STOPS or AUTO PROGRAM SIZING PUSHER for mass production jobs.</li>
<li>PLC controlled automatic pusher, fence device driven by servomotor active as:</li>
<li>STOPS: Key in the size, it will automatically move to the position, ready for the cutting size and automatic finish the cutting cycle.</li>
<li>PUSHER FENCE: Key in all the sizes and each job’s quantities, it will move to the material length, after loaded, it pushes to the first size, automatically does the cutting cycle. Then it will keep going for the quantity or the next size was inputted. Continued until all the cutting is finished, and then it will automatically restart again.</li>
<li>Fifty sets of job data memory, extendable: printer, PC link, and unlimited memory.</li>
<li>Efficiency and accuracy for all jobs requiring sizing such as boring, drilling and cutting.</li>
<li>Super traveling speed up to 200 feet per minute.</li>
<li>Within 0.004" accuracy.</li>
<li>Other lengths are available.</li>
<li>Sealed long-life ball bearings.</li>
<li>Full 3 HP x 2 motor for powerful cutting capacity.</li>
<li>Precision ground cast iron table with heavy metal cabinet stands.</li>
<li>Easy operation for furniture, lumber, door, pallet or other manufacturing.</li>
<li>Saw blades come up from bottom of the table and returns right after cutting for safety operation.</li>
<li>Magnetic control with overload protection.</li>
<li>A full saw blade guard prevents any danger during cutting cycle.</li>
</ul>
<h3> </h3>
<table style="width: 598px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="159">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="169"> </td>
</tr>
<tr>
<td rowspan="4" width="159">
<p>Cutting Capacity </p>
</td>
<td width="169">
<p align="center">4 1/4" x 10"</p>
</td>
</tr>
<tr>
<td width="169">
<p align="center"> 2 1/4" x 12 1/4"</p>
</td>
</tr>
<tr>
<td width="169">
<p align="center"> 1 1/2" x 12 1/2"</p>
</td>
</tr>
<tr>
<td width="169">
<p align="center"> 1/2" x 13 1/2"</p>
</td>
</tr>
<tr>
<td width="159">
<p>Designed Cutting</p>
</td>
<td width="169">
<p align="center"> 45 Cycles/Min</p>
</td>
</tr>
<tr>
<td width="159">
<p>Saw Blade Diameter</p>
</td>
<td width="169">
<p align="center"> 18"</p>
</td>
</tr>
<tr>
<td width="159">
<p align="center">Saw Arbor</p>
</td>
<td width="169">
<p align="center"> 1"</p>
</td>
</tr>
<tr>
<td width="159">
<p>Saw Blade Speed</p>
</td>
<td width="169">
<p align="center"> 3200 RPM</p>
</td>
</tr>
<tr>
<td width="159">
<p>Air Pressure</p>
</td>
<td width="169">
<p align="center"> 90 PSI</p>
</td>
</tr>
<tr>
<td width="159">
<p align="center">Dust Hood </p>
</td>
<td width="169">
<p align="center"> 4"</p>
</td>
</tr>
<tr>
<td width="159">
<p>Motor</p>
</td>
<td width="169">
<p align="center"> 10 HP 3 PH 230V</p>
</td>
</tr>
<tr>
<td width="159">
<p>Machine Size (W x L)</p>
</td>
<td width="169">
<p align="center"> 30” x 28 ½”</p>
</td>
</tr>
<tr>
<td width="159">
<p>N.W.</p>
</td>
<td width="169">
<p align="center">730 LBS</p>
</td>
</tr>
<tr>
<td width="159">
<p>G.W.</p>
</td>
<td width="169">
<p align="center">800 LBS</p>
</td>
</tr>
</tbody>
</table>
