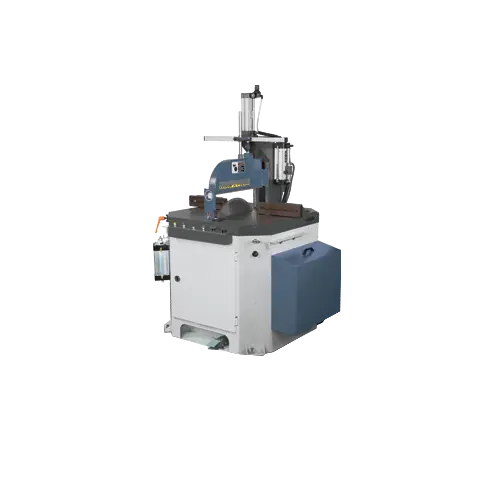

Castaly 45-Degree Adjustable Table 20" Cut Off Saw CS-20RL45
Have one to sell?
ConditionNew
New
Castaly 45-Degree Adjustable Table 20" Cut Off Saw CS-20RL45 is a machine that will automatically perform clamping and cutting for convenient operation.
Features:
Adjustable maximum 45 degree to the right or left or 90 degree angle setting for semi-automatic, fast cutting.
Semi-automatic by pneumatic movement cutting.
Automatic cutting cycle simply operated by foot switch.
Sealed long-life ball bearings.
Full 10 HP motor for powerful cutting capacity.
Precision ground cast iron table with heavy metal cabinet stand.
Easy operation for furniture, lumber, door, pallet or other manufacturing.
Clamp and guard automatically holds the lumber within cutting period and releases it after cutting.
Saw blade rises from under the table and return right after cutting for safety operation.
Magnetic control with overload protection.
SPECIFICATIONS
Cutting Capacity (H x W)
3/4" x 11"
90 Degree
2 1/8" x 6"
45 Degree
1 1/2" x 12 1/2"
45 Degree
1/2" x 13 1/2"
Designed Cutting
25 Cycles/Min
Saw Blade Diameter
20"
Saw Blade Arbor
1"
Saw Blade Speed
3600 RPM
Air Pressure
90 PSI
Dust Hood
4"
Motor (220/440V)
10 HP 3 PH
Overall Dimension (W x L)
47" x 40"
N.W.
910
G.W.
1200
