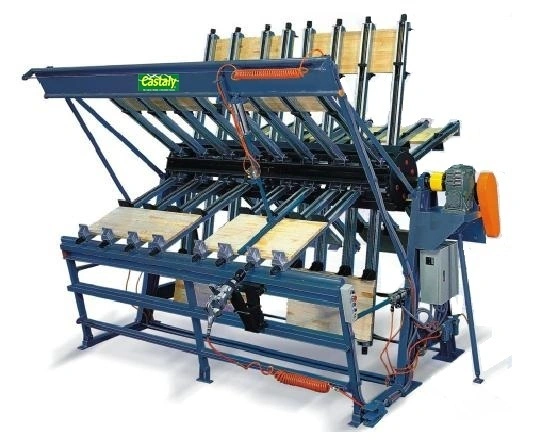

<p>Castaly 4' x 8' 20-Section Semi-Auto Clamp Carrier CC-4820AC is constructed of a large I-beam frame & legs for max. rigidity and durability.</p>
<h3>Features:</h3>
<ul class="dotted-list">
<li class="simple-check-list">Line of automated room temperature cold gluing and lamination, joints are dried naturally, to achieve maximum strength bond.</li>
<li class="simple-check-list">Heavy-duty zinc-plated clamp with huge 3/4" diameter jack bolt for super strength.<br></li>
<li class="simple-check-list">Caterpillar chain drive; the clamp sections rotate powerfully.</li>
<li class="simple-check-list">A select switch control for moving in auto or manual mode.</li>
<li class="simple-check-list">A most versatile and reliable edge gluing machine for woodworking industry, laminating for laminate board, parquet, flat stock, table top, core black, truck flooring, turnings, up chair seat, queen leg and many other.</li>
<li class="simple-check-list">The clamp tightener, with two pneumatic wrenches for rapid tightening and loosening of clamp.</li>
<li class="simple-check-list">The two panel flattener is pneumatic powered to hold down the panels flat while clamps are tightened.</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p>Total Sections</p>
</td>
<td style="text-align: center;">
<p>20</p>
</td>
</tr>
<tr>
<td>
<p>Clamps at Each Section</p>
</td>
<td style="text-align: center;">
<p>8</p>
</td>
</tr>
<tr>
<td>
<p>Total Clamps</p>
</td>
<td style="text-align: center;">
<p>160</p>
</td>
</tr>
<tr>
<td>
<p>Max. Clamp Working Depth</p>
</td>
<td style="text-align: center;">
<p>50"</p>
</td>
</tr>
<tr>
<td>
<p>Max. Working Width</p>
</td>
<td style="text-align: center;">
<p>100"</p>
</td>
</tr>
<tr>
<td>
<p>Max. Working Thickness</p>
</td>
<td style="text-align: center;">
<p>3 1/2"</p>
</td>
</tr>
<tr>
<td>
<p>Panel Flattener</p>
</td>
<td style="text-align: center;">
<p>2</p>
</td>
</tr>
<tr>
<td>
<p>Tightener Wench</p>
</td>
<td style="text-align: center;">
<p>2</p>
</td>
</tr>
<tr>
<td>
<p>Drive Motor</p>
</td>
<td style="text-align: center;">
<p>1 HP</p>
</td>
</tr>
<tr>
<td>
<p>Hydraulic Pump</p>
</td>
<td style="text-align: center;">
<p>5 HP</p>
</td>
</tr>
<tr>
<td>
<p>Electrical Requirements</p>
</td>
<td style="text-align: center;">
<p>220V or 440V 3PH (Pre-wired 220V)</p>
</td>
</tr>
<tr>
<td>
<p>Machine Sizes (W x H)</p>
</td>
<td style="text-align: center;">
<p>165" x 150"</p>
</td>
</tr>
<tr>
<td>
<p>Machine Size (Depth)</p>
</td>
<td style="text-align: center;">
<p>220"</p>
</td>
</tr>
<tr>
<td>
<p>N. W. (LBS)</p>
</td>
<td style="text-align: center;">
<p>11,000</p>
</td>
</tr>
</tbody>
</table>
