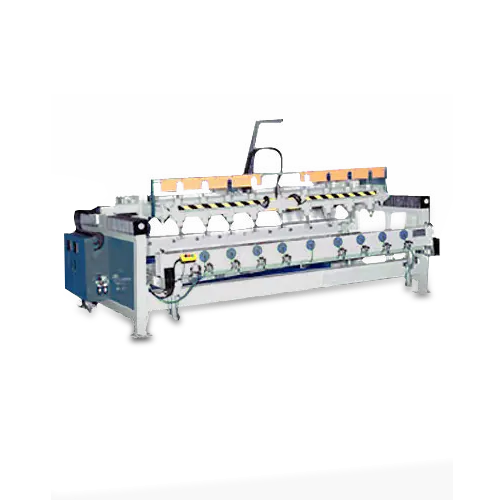

Castaly Manual Copy Carving Machine CM-8CAR

<p>Castaly Manual Copy Carving Machine CM-8CAR is a special design 3D carving machine by menu copy with template for wood, artistic and plastic, etc.</p> <h3><strong>Features:</strong></h3> <ul> <li class="simple-check-list">Fix the template at middle axis, the other 8 axis spindles will follow it and carving the material when it is automatically rotated 360 degrees.</li> <li class="simple-check-list">The spindle motor is controlled by high frequency inverter from 9,000 to 12,000 RPM for best carving effects.</li> <li class="simple-check-list">Cutterhead can be adjusted at X or Y direction.</li> <li class="simple-check-list">Carving angle can be adjusted at 30 to 120 degrees.</li> <li class="simple-check-list">Custom order for 2, 4, 6, 8 or 12 spindle machine or special size.</li> </ul> <p>&nbsp;</p> <div>&nbsp;</div> <table border="1" cellpadding="0"> <tbody> <tr> <td width="217"> <p><strong>Specifications:</strong></p> </td> <td width="303">&nbsp;</td> </tr> <tr> <td width="217"> <p>Max. Working Diameter</p> </td> <td width="303"> <p align="center">12" (300 mm)</p> </td> </tr> <tr> <td width="217"> <p>Max. Working Length</p> </td> <td width="303"> <p align="center">35" (900 mm)</p> </td> </tr> <tr> <td width="217"> <p>Main Spindle Motor </p> </td> <td width="303"> <p align="center">2 HP x 4</p> </td> </tr> <tr> <td width="217"> <p>Turning Motor</p> </td> <td width="303"> <p align="center">2 HP x 1</p> </td> </tr> <tr> <td width="217"> <p>Spindle Speed</p> </td> <td width="303"> <p align="center">7000 RPM</p> </td> </tr> <tr> <td width="217"> <p>Machine Dimensions</p> </td> <td width="303"> <p align="center">144" x 79" x 51" (3660 x 2000 x 1300 mm)</p> </td> </tr> <tr> <td width="217"> <p>Machine Weight</p> </td> <td width="303"> <p align="center">6160 LBS (2800 kg)</p> </td> </tr> </tbody> </table>
