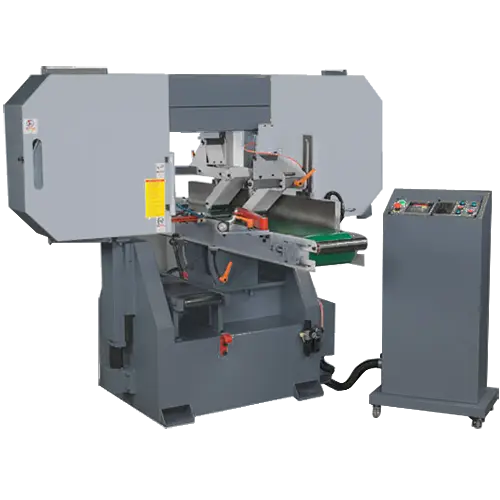

<p>Castaly Horizontal Band Resaw models, BS-1212HR and BS-1616HR, are built with rugged construction throughout for maximum stability, high precision cutting and minimum trouble.</p>
<h3><strong>Features:</strong></h3>
<ul>
<li class="simple-check-list">Machine was built with ruggedly constructed throughout for maximum stability, high precision cutting and minimum trouble.</li>
<li class="simple-check-list">It is equipped with a digital controller for convenient and accurate thickness setting.</li>
<li class="simple-check-list">The feed conveyor has a tilting design allowing for maximum 30 degree bevel cuts.</li>
<li class="simple-check-list">When the feed conveyor is tilted for bevel cutting a side support is applied for safe and stable cutting operations.</li>
<li class="simple-check-list">Variable feed speed is controlled by a frequency inverter for best cutting requested.</li>
<li class="simple-check-list">The infeed and outfeed pressure rollers are easily raised or lowered by a gear rack.</li>
<li class="simple-check-list">The infeed and outfeed pressure rollers are spring loaded and easily adjusted for the horizontal or vertical direction to suit various workpiece thicknesses.</li>
<li class="simple-check-list">Blade tension is adjusted by means of a hand wheel.</li>
<li class="simple-check-list">A tension scale allows the operator to correctly adjusted the tension for different blade thickness.</li>
<li class="simple-check-list">The cast iron saw blade wheel is dynamically balanced for smooth running.</li>
<li class="simple-check-list">Blade guard is easily lifted up, supported by two nitrogen gas cylinders for convenient blade change.</li>
<li class="simple-check-list">The roller type return conveyor equipped at left side of the machine provides easily repetitive cutting.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="top" width="277">
<p><strong>Specifications:</strong></p>
</td>
<td valign="top" width="180">
<p align="center"> </p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Max. Working Width</p>
</td>
<td valign="top" width="180">
<p align="center">16 ½”</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Max. Working Height (under Rollers)</p>
</td>
<td valign="top" width="180">
<p align="center">16”</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Distance between Blade to Conveyor</p>
</td>
<td valign="top" width="180">
<p align="center">¼” to 12”</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Saw Wheel Diameter</p>
</td>
<td valign="top" width="180">
<p align="center">32” x 2</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Saw Blade Length (Width)</p>
</td>
<td valign="top" width="180">
<p align="center">230 ¾” (2” ~ 4”)</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Saw Blade Speed</p>
</td>
<td valign="top" width="180">
<p align="center">6150 FPM</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Feed Conveyor Size (W x L)</p>
</td>
<td valign="top" width="180">
<p align="center">16” x 165 ½”</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Feed Conveyor Tilt Degree</p>
</td>
<td valign="top" width="180">
<p align="center">~</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Feed Speed (Variable)</p>
</td>
<td valign="top" width="180">
<p align="center">0 ~ 60 FPM</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Return Conveyor Size</p>
</td>
<td valign="top" width="180">
<p align="center">100” x 24” x 32”</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Main Saw Motor</p>
</td>
<td valign="top" width="180">
<p align="center">30 HP</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Saw Blade Lift Motor</p>
</td>
<td valign="top" width="180">
<p align="center">½ HP</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Feed Conveyor Motor</p>
</td>
<td valign="top" width="180">
<p align="center">2 HP</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Return Conveyor Motor</p>
</td>
<td valign="top" width="180">
<p align="center">1 HP</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Dust Hood</p>
</td>
<td valign="top" width="180">
<p align="center">4” x 2</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>Machine Size</p>
</td>
<td valign="top" width="180">
<p align="center">128” x 130” x 78”</p>
</td>
</tr>
<tr>
<td valign="top" width="277">
<p>N.W.</p>
</td>
<td valign="top" width="180">
<p align="center">4000 lbs.</p>
</td>
</tr>
</tbody>
</table>
