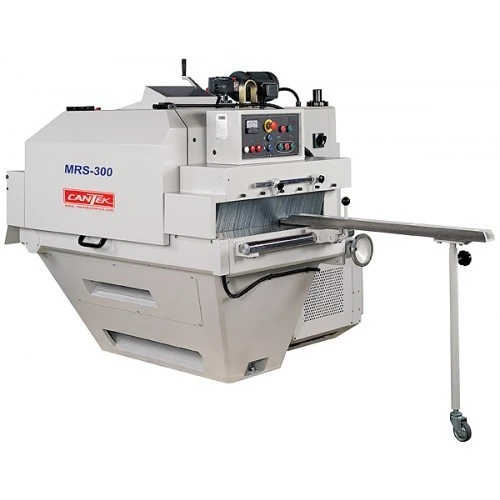

<p>Cantek MRS300 12" Multi Rip Saw is made with a cast iron frame, main parts are enclosed, ensuring protection and perfect stability. One of several options of Multi Rip Saws Cantek has available.</p>
<h3>Features:</h3>
<div>
<ul>
<li>The Frame is Cast Iron, all the main parts are enclosed, ensuring protection and perfect stability.</li>
<li>Straight line caterpillar feeding with heavy guided chain. Chain blocks are special cast iron with heat treated & precision ground pins.</li>
<li>Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve.</li>
<li>3 sets of Anti-Kickback Fingers 2 top, 1 bottom.</li>
<li>Powered Rise & Fall to the pressure rollers.</li>
<li>New style round Fence Bar support with quick shift long fence.</li>
<li>Automatic Centralized lubrication system.</li>
<li>Automatic Star-Delta Starter (slow speed start) and low voltage controls.</li>
<li>E style European guard & safety features.</li>
<li>Long fence for control of long material.</li>
<li>Automatic star-delta starter <em>(slow soft-low amperage start)</em> and low voltage controls.</li>
</ul>
</div>
<p> </p>
<table>
<tbody>
<tr>
<td width="172"><strong>Specifications:</strong></td>
<td style="text-align: center;" width="161"> </td>
</tr>
<tr>
<td width="172">Maximum Working Thickness: 14” Blade</td>
<td style="text-align: center;" width="161">4.33” (110mm) without short stock attachment</td>
</tr>
<tr>
<td width="172"> </td>
<td style="text-align: center;" width="161">3.74” (95mm) with short stock attachment</td>
</tr>
<tr>
<td width="172"> 15” Blade</td>
<td style="text-align: center;" width="161">4.72” (120mm) without short stock attachment</td>
</tr>
<tr>
<td width="172">Minimum Length</td>
<td style="text-align: center;" width="161">23” (585mm) without short stock attachment</td>
</tr>
<tr>
<td width="172"> </td>
<td style="text-align: center;" width="161">11.8” (300mm) with short stock attachment</td>
</tr>
<tr>
<td width="172">Maximum Cutting Width</td>
<td style="text-align: center;" width="161">11.8” (300mm)</td>
</tr>
<tr>
<td width="172">Distance from Column to Center of Chain</td>
<td style="text-align: center;" width="161">14.17” (360mm)</td>
</tr>
<tr>
<td width="172">Saw Blade Diameter</td>
<td style="text-align: center;" width="161">8” to 15” (203 to 380mm)</td>
</tr>
<tr>
<td width="172">Saw Arbor Sleeve Diameter (Blade Bore)</td>
<td style="text-align: center;" width="161">70 mm w/ keyways</td>
</tr>
<tr>
<td width="172">Saw Arbor Diameter</td>
<td style="text-align: center;" width="161">50 mm</td>
</tr>
<tr>
<td width="172">Saw Arbor Speed</td>
<td style="text-align: center;" width="161">3800 RPM</td>
</tr>
<tr>
<td width="172">Saw Motor HP</td>
<td style="text-align: center;" width="161">50 HP – Voltage 460/3/60</td>
</tr>
<tr>
<td width="172">Powered Pressure Rollers (Rise/Fall)</td>
<td style="text-align: center;" width="161">½ HP motor</td>
</tr>
<tr>
<td width="172">Feed Speeds</td>
<td style="text-align: center;" width="161">25 – 100 FPM (7.5~30 m/min)</td>
</tr>
<tr>
<td width="172">Feed Motor HP</td>
<td style="text-align: center;" width="161">2 HP</td>
</tr>
<tr>
<td width="172">Dust Hood Diameter</td>
<td style="text-align: center;" width="161">2 @ 6”</td>
</tr>
<tr>
<td width="172">Table Size</td>
<td style="text-align: center;" width="161">60″ x 30” (1530x760mm)</td>
</tr>
<tr>
<td width="172">Table Height from Floor</td>
<td style="text-align: center;" width="161">33.5”</td>
</tr>
<tr>
<td width="172">Net Weight</td>
<td style="text-align: center;" width="161">4510 lbs. (2050 kgs)</td>
</tr>
<tr>
<td width="172">Shipping Weight</td>
<td style="text-align: center;" width="161">5060 lbs. (2300 kgs)</td>
</tr>
<tr>
<td width="172">Machine Dimensions</td>
<td style="text-align: center;" width="161">82.68” x 59” x 56 ½” (2100 x 1500 x 1435 mm)</td>
</tr>
</tbody>
</table>
