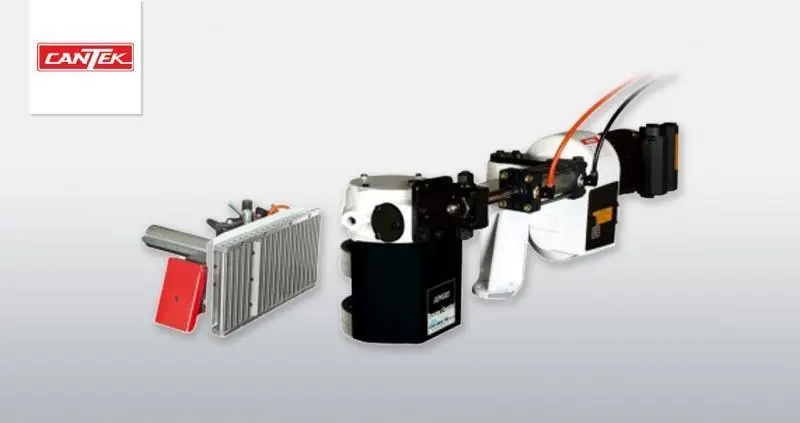

<p>The Cantek Resaw Feeder AF19N is designed to allow consistent and automated feeding of material through vertical bandsaws or resaws. The AF19N is pneumatically actuated by a switch in the fence so a foot pedal is not required making for a simple and convenient operation. With 10 feed speeds to choose from, you can dial in the optimum feed speed for your material. </p>
<h3><strong>Features:</strong></h3>
<ul>
<li>Consistent feeding for bandsaws and resaws.</li>
<li>Pneumatic activation of feeding unit, no foot pedal required.</li>
<li>Ten (10) feed speeds for optimum control.</li>
<li>Line bar roller fence is easily adjusted by rack and pinion handle.</li>
<li>Includes two (2) adjustable steel serrated rollers.</li>
<li>Can be easily mounted to almost any bandsaw or resaw (recommended for 24" and up).</li>
</ul>
<p> </p>
<table style="width: 853px;" border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="bottom" width="228">
<p><strong>Specifications:</strong></p>
</td>
<td valign="bottom" width="312">
<p align="center"><strong>INCH</strong></p>
</td>
<td valign="bottom" width="312">
<p align="center"><strong>METRIC</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Feed Speeds (10)</p>
</td>
<td valign="bottom" width="312">
<p align="center">4/8.5/8.5/14/17/25/28/30/50/60 FPM</p>
</td>
<td valign="bottom" width="312">
<p align="center">1.5/2.5/2.5/4/5/7.5/8/9/15/18 M/min</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Roller size</p>
</td>
<td valign="bottom" width="312">
<p align="center">Φ6-7/8”x 1-9/16″ x 2 pcs / Cast Steel</p>
</td>
<td valign="bottom" width="312">
<p align="center">Φ175 x 40 mm x 2 pcs</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Motor</p>
</td>
<td valign="bottom" width="312">
<p align="center">1/2 HP (0.375 KW), 3 phase; Forward</p>
</td>
<td valign="bottom" width="312">
<p align="center">1/2 HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Maximum roller stroke</p>
</td>
<td valign="bottom" width="312">
<p align="center">8”</p>
</td>
<td valign="bottom" width="312">
<p align="center">200 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Fence dimensions</p>
</td>
<td valign="bottom" width="312">
<p align="center">16” x 7 7/8”</p>
</td>
<td valign="bottom" width="312">
<p align="center">400 x 200 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Max. Roller-Blade Clearance</p>
</td>
<td valign="bottom" width="312">
<p align="center">8 1/4”</p>
</td>
<td valign="bottom" width="312">
<p align="center">210 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Net Weight</p>
</td>
<td valign="bottom" width="312">
<p align="center">176 Lbs</p>
</td>
<td valign="bottom" width="312">
<p align="center">79 Kg</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Gross Weight</p>
</td>
<td valign="bottom" width="312">
<p align="center">209 Lbs</p>
</td>
<td valign="bottom" width="312">
<p align="center">97 Kg</p>
</td>
</tr>
<tr>
<td valign="bottom" width="228">
<p>Packing Size</p>
</td>
<td valign="bottom" width="312">
<p align="center">48″ x 18-7/8″ x 18-1/2″</p>
</td>
<td valign="bottom" width="312">
<p align="center">1220 x 480 x 470 mm</p>
</td>
</tr>
</tbody>
</table>
