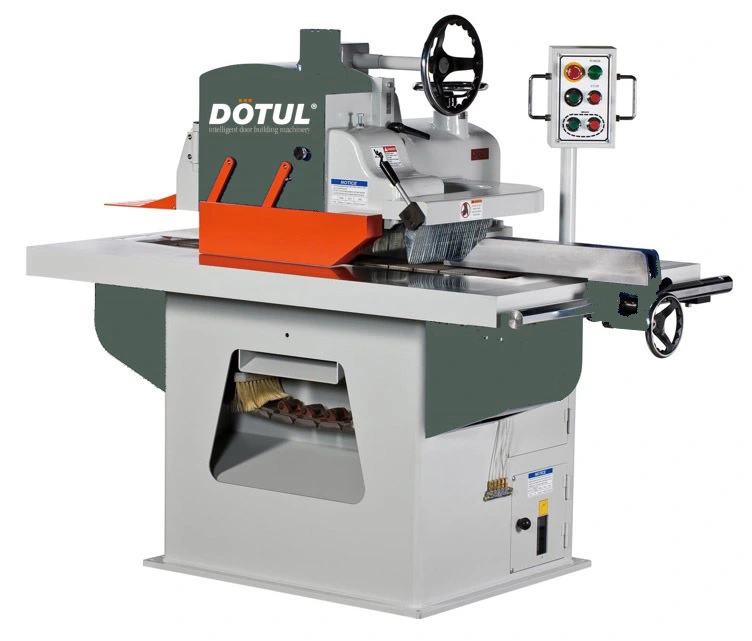

Dotul Straight Line Rip Saw MT-100

<p>The Dotul Straight Line Rip Saw MT-100 is a newly designed large table straight line rip saw. Several options are available for the processing of parts requiring a smooth edge for gluing without additional processing required. Each part ripped is finished so that the wood part is ready for the gluing process. The newly designed rip saw has available options not offered by other companies. The return roller option allows for large heavy lumber parts to be returned to the operator for re-ripping and correct part sizing using the optional stop system located near the rip fence. User friendly laser light mounted on the operator side of the saw allows the operator to view the defect to be cut out of the lumber and the best utilization of lumber can be achieved.</p> <h3><strong>Features:</strong></h3> <ul> <li>10 HP 220/440 volt 3 phase available.</li> </ul> <ul> <li>Larger surface table top.</li> </ul> <ul> <li>Larger width cutting depth.</li> </ul> <ul> <li>Automatic chain lubricating system.</li> </ul> <ul> <li>Double anti-kickback fingers, outfeed protection for saw blade.</li> </ul> <ul> <li>Easy stop start control panel.</li> </ul> <ul> <li>Easy access to replace rip blade.</li> </ul> <ul> <li>Adjustable feed rate.</li> </ul> <p>&nbsp;</p> <h3><strong>Optional:</strong></h3> <ul> <li>110 volt laser light mounted inline with rip blade.</li> </ul> <ul> <li>Table wing for mounting stop system.</li> </ul> <ul> <li>Material return roller system.</li> </ul> <p>&nbsp;</p> <table> <tbody> <tr> <td> <p><strong>Specifications:</strong></p> </td> <td style="text-align: center;"> <p><strong>&nbsp;</strong></p> </td> </tr> <tr> <td> <p>Width of Machine&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>48" wide without rollers</p> </td> </tr> <tr> <td> <p>Optional Roller Size&nbsp; &nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>12" wide x 60" long 2½" diameter rollers</p> </td> </tr> <tr> <td> <p>Length of Machine&nbsp; &nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>60" long</p> </td> </tr> <tr> <td> <p>Height of Machine&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>32" table top height</p> </td> </tr> <tr> <td> <p>Horse Power</p> </td> <td style="text-align: center;"> <p>10 HP arbor motor 220/440 volt 3 ph,</p> <p>1 HP feed motor</p> </td> </tr> <tr> <td> <p>Feed Rate &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>Variable 30 to 85 FPM</p> </td> </tr> <tr> <td> <p>Saw Blade Size&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>10" to 14", + 1" arbor size</p> </td> </tr> <tr> <td> <p>Feed Chain Width&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>6" lugged chain</p> </td> </tr> <tr> <td> <p>Minimum Workpiece&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>10" long 2" wide</p> </td> </tr> <tr> <td> <p>Dust Hood Size&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>4" above blade</p> </td> </tr> <tr> <td> <p>NW&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>2400 lbs</p> </td> </tr> <tr> <td> <p>GW&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</p> </td> <td style="text-align: center;"> <p>2400 lbs</p> </td> </tr> <tr> <td> <p>Floor Space Required w/Rollers</p> </td> <td style="text-align: center;"> <p>60" wide x 66" long</p> </td> </tr> </tbody> </table> <p>&nbsp;</p> <p>&nbsp;</p> <p>&nbsp;</p>
