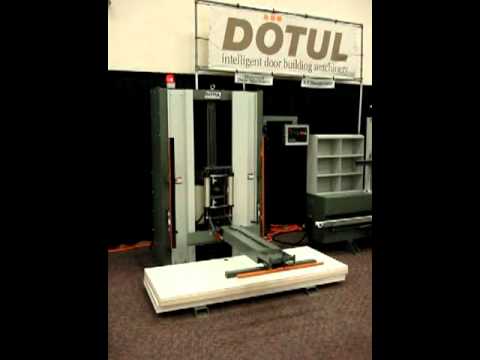

Dotul Vertical Door Loader & Off-Loader DT-526
Have one to sell?
ConditionNew
New
Using the DT-526 Vertical Door Loader & Off-Loader at the end of the machining functions on the door, allows for the door to be unloaded and loaded on a pallet or door cart.
With the flip of a switch, the loader will change functions and allow the door exiting from the vertical door position be re-stacked (jambs cannot be attached).
Features:
Adjustable air clamping for light or heavy doors.
Safety warning light when machine operates.
Guarded mechanical areas for safety.
Steel surfaces covered w/anti-marking materials.
Easy access to electrical control panel.
Air nozzle and hose for cleaning doors.
Swing away operator control panel.
Emergency stop arm.
Automatic door lifting and positioning.
Small shop foot print.
Will work with most vertical door machines.
Will load doors with raised moulding on both sides.
Doors with raised moulding two sides.
Doors from 18" - 48" wide.
Doors up to 108" in length.
1 3/8" to 2 1/4" thick doors.
Doors up to 250 lbs.
Re-stacking door capability.
Specifications:
Door Width
18" to 48"
Door Height
Up to 9'0"
Door Thickness
1 3/8" to 2 ¼"
Door Weight
Up to 250 lbs.
Uses
3 CFM of air 90 PSI
Electrical
230/460 volt 3 phase
Width
54" ~ with control panel ~ 82"
Length
90"
Weight
1800 lbs.
Additional Models Available:
DT-540 (Unloads only)
DT-525 (Loads only)
