<p>The MCS system must be connected to an external silo via an auger
conveyor. The boiler and burner are identical to type M, but the
fuel storage is replaced by a stoker (automatic feeder unit) with a cell
lock to which the auger conveyor from the external silo delivers the
fuel.</p>
<p>In addition to the fuels for which it has technical approval, the MCS
system is also designed for burning light fuels such as wood chips,
sawdust and wood shavings and it can be combined with one of TwinHeat's
fully automatic silo systems.<br><br> The system is tested and has been
granted technical approval by the Danish Technological Institute in
accordance with DS/EN303-5 for the following fuel types: wood pellets,
grains and wood chips.</p>
<p>When burning homogeneous (uniform) fuels such as wood pellets and
grains, users often have traditional feed silos erected indoors/outdoors
or in a basement. More often than not, fuel is delivered by tanker and
injected into the silo. The fuel is transported to the burner via a
rigid or flexible auger. When burning non-uniform fuels such as wood
chips and wood chips, TwinHeat can provide auger conveyors,
self-emptying silos and scraper systems for greater capacity.</p>
<p></p>
<!--StartFragment-->
<h2><strong>Delivery Format</strong></h2>

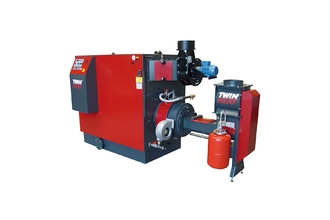

<p>A TwinHeat MCS system is delivered complete and ready for
installation. The system consists of three main component parts: Boiler
unit, water-cooled burner tube and stoker unit. As standard, all MCS
systems are fitted with: cell lock, sprinkler system to prevent
back-burn, user-friendly oxygen control, draught regulator for manual
firing, flue temperature regulator in boiler (bypass), cleaning brush
and poker.</p>
<p></p>
<!--StartFragment-->
<h2><strong>Extra Accessories for Installation:</strong></h2>
<ul><li>Shunt valve</li>
<li>Draught stabilizer</li>
<li>Damper and connection set for auger feeder</li>
</ul>
<!--StartFragment-->
<p></p>
<p>The MCS Series is available in three (3) different Models:</p>
<ul><li>MCS20i - 29 kW</li><li>MCS40i - 48 kW</li><li>MCS80i - 80 kW</li></ul>
<p></p>
<p>Please see Brochure for additional information and Technical Data.</p>
