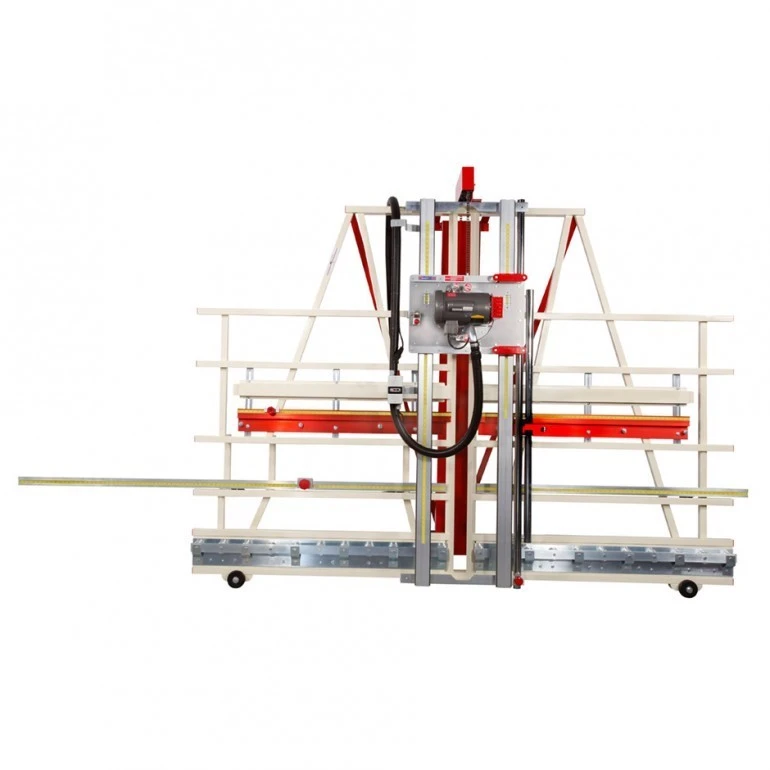

High production panel processing is now a reality. Cut material 2 1/8″ deep for 8+ hours per day and within .005″ straight and square. Every component of this saw represents quality and performance. Featuring three different motor configurations, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these top of the line woodworking tools will boost your shops production. The 13′ frame is only difference between this machine and the 7400-M panel saw.
Standard Equipment:
Continuous usage induction saw motor.
Welded steel frame and integrated stand system.
Dual V-track precision guide system.
Adjustable vertical and horizontal rulers.
Floating pressure saw foot.
Solid aluminum material rollers.
Enclosed counterweight system.
Dust collection ready.
3 year warranty.
TUV certified to UL/CSA standards
Specifications:
Weight 1050 lbs
Dimensions 160 × 98 × 48 in
Max. Crosscut 64"/1625 mm
Max. Rip Cut Unlimited
Cut Depth 2 ⅛"/55 mm
Cut Accuracy .005"/.125 mm
Frame Length 156"/3950 mm
Daily Usage Continuous (8+ Hours)
Rollers 28
Saw Blade Diameter 8"/210 mm
Motor 2HP, 1~ 230V, 3HP, 3~ 230V, 3HP, 3~ 460V
