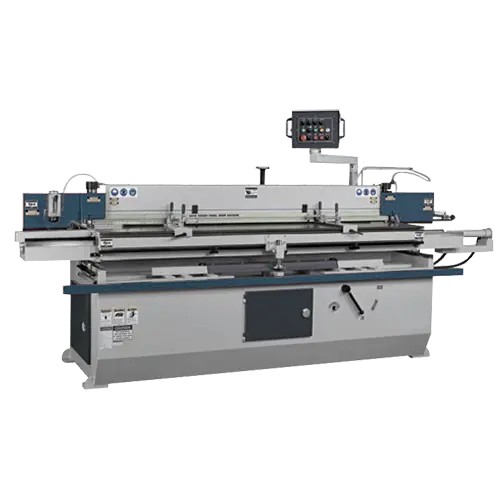

<p>The Castaly 102" Auto Raised Panel Door Shaper CS-102PAAU is specially designed to make all the parts for raised-panel doors by one spindle shaper without changing knife (rail stile, panel) to get mass production.</p>
<p>Features:</p>
<!--StartFragment--><li>it is able to do the chair leg, furniture parts by the maximum 7" width (in and out) copy capacity.</li><li>The 6" high stackable spindle with 3 pneumatic stops are easily and accrual setup for each cutter position.</li><li>Rigid construction made by heavy sheet metal frame, case iron table & base for durability usage.</li><li>Full power industrial motor is suitable for best cutting capacity.</li><li>Strong cutting power does not need to be precut for the arch or oval panel.</li><li>Table movements from right to left are hydraulic powered to achieve powerful cutting and adjust cutting speed variability.</li><li>Table movements in and out are pneumatic powered to follow the template sensitively and ensure the same shape was copy.</li><li>Linear guide rails and bearings let the moving table by lightweight and smoothly to get the long-life usage also.</li><li>Two side cast iron fences locked in the groove to finish square cut and centering the workpiece easily.</li><li>Heavy-duty air pistons were holding down the workpieces tightly without slide during the cutting process.</li><li>Proximity switches control the cutting stroke depend by the work size for fast production and time saving.</li><li>Two separate stops work for rail, stile or panel arch cutting positions.</li><li></li><!--StartFragment-->
<table><tbody><tr><td height="22"><strong>SPECIFICATION</strong></td>
<td><strong>CS-102PAAU</strong></td>
</tr>
<tr>
<td height="22">Max. Cutting Capacity</td>
<td> </td>
</tr>
<tr>
<td height="22">Length (Left to Right)</td>
<td>102"</td>
</tr>
<tr>
<td height="22">Width (In and Out)</td>
<td>7"</td>
</tr>
<tr>
<td height="22">Thickness</td>
<td>6"</td>
</tr>
<tr>
<td height="22">Max. Cutter Size</td>
<td>7"</td>
</tr>
<tr>
<td height="22">Spindle Diameter</td>
<td>1¼" </td>
</tr>
<tr>
<td height="22">Spindle Length</td>
<td>6"</td>
</tr>
<tr>
<td height="22">Spindle Speed</td>
<td>9,000 RPM</td>
</tr>
<tr>
<td height="22">Main Motor</td>
<td>15 HP</td>
</tr>
<tr>
<td height="22">Hyd. Pump</td>
<td>1 HP</td>
</tr>
<tr>
<td height="22">Dust Hood</td>
<td>4"</td>
</tr>
<tr>
<td height="22">Net Weight</td>
<td>3,550 LBS</td>
</tr>
<tr>
<td height="22">Gross Weight</td>
<td>4,360 LBS</td></tr></tbody></table>
