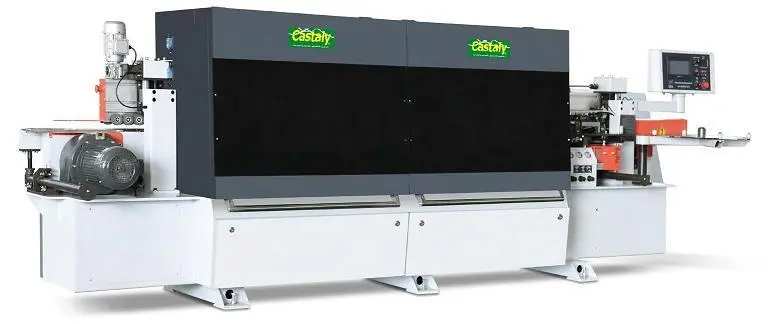

<p>Castaly Auto Edgebander EB-K6 features heavy, robust construction to eliminate vibration and ensures accuracy and stability.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Automatic feed station for: Pre-Mill, Gluing, Pneumatic Guillotine, Double End Trimming, Top & Bottom Fine Edge trimming, Edge Polishing (BY THE MODEL Number).</li>
<li>The feed of edging material, by “strip” or coil is automatic and synchronous with panel feed.</li>
<li>Sound / Safety covers for all work units with all required dust extraction outlets.</li>
<li>Pressure beam with staggered rubber rollers for optimum guidance of workpiece.<br></li>
<li>Chain track with precision ground round guides to ensure precise linear tracking of the workpiece and rubber pads to eliminate “marring.”</li>
<li>Pressure beam mounted on two heavy cast columns with mechanical digital readout for thickness adjustment.</li>
<li>Outrigger support for wider work pieces.</li>
<li>Side Pressure Unit: Side pressure with one driven and two idle rollers with independent adjustment, for straight edge banding only.</li>
<li>Gluing Unit: Hot melted glue unit with synchronously driven glue roller for application of hot melted glue to the vertical edge of the workpiece prior to the application of edge banding.</li>
<li>End Cutting Unit: Pneumatic guillotine application for cutting end of band material.</li>
<li>Double End Trimming Unit: Application for fine trimming front & rear edge by saw blade with two independent</li>
<li>high frequency, inverter driven motors.</li>
<li>Edge Fine Trimming Unit: This top and bottom edge fine trimming unit is completed by cutter head with two independent high frequency, inverter driven motors to round the corners and edges automatically.</li>
<li>Polishing Unit: Apply the finest finish surfacing process on top and bottom edge.</li>
</ul>
<p> </p>
<table style="width: 440px;" border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td> </td>
</tr>
<tr>
<td>
<p>Edging PVC Film Band Thickness</p>
</td>
<td>
<p align="center">0.4 ~ 3 MM</p>
</td>
</tr>
<tr>
<td>
<p>Workpiece Thickness</p>
</td>
<td>
<p align="center">10 ~ 60 MM</p>
</td>
</tr>
<tr>
<td>
<p>Workpiece Min. Length</p>
</td>
<td>
<p align="center">6.3"</p>
</td>
</tr>
<tr>
<td>
<p>Workpiece Min. Width</p>
</td>
<td>
<p align="center">3.5"</p>
</td>
</tr>
<tr>
<td>
<p>Gluing Roller Motor</p>
</td>
<td>
<p align="center">0.75 KW</p>
</td>
</tr>
<tr>
<td>
<p>Heating Glue Tank Power</p>
</td>
<td>
<p align="center">2.3 KW</p>
</td>
</tr>
<tr>
<td>
<p>Pre-Mill Motor</p>
</td>
<td>
<p align="center">~</p>
</td>
</tr>
<tr>
<td>
<p>Pre-Mill Cutter Speed</p>
</td>
<td>
<p align="center">~</p>
</td>
</tr>
<tr>
<td>
<p>End Trimming Motor</p>
</td>
<td>
<p align="center">0.7 KW x 2</p>
</td>
</tr>
<tr>
<td>
<p>End Trimming Speed</p>
</td>
<td>
<p align="center">12000 RPM</p>
</td>
</tr>
<tr>
<td>
<p>Rough Edge Trimming Motor</p>
</td>
<td>
<p align="center">0.7 KW x 2</p>
</td>
</tr>
<tr>
<td>
<p>Rough Edge Trimming Speed</p>
</td>
<td>
<p align="center">12000 RPM</p>
</td>
</tr>
<tr>
<td>
<p>Fine Edge Trimming Motor</p>
</td>
<td>
<p align="center">0.7 KW x 2</p>
</td>
</tr>
<tr>
<td>
<p>Fine Edge Trimming Speed</p>
</td>
<td>
<p align="center">12000 RPM</p>
</td>
</tr>
<tr>
<td>
<p>Scraping Heads</p>
</td>
<td>
<p align="center">2 Sets</p>
</td>
</tr>
<tr>
<td>
<p>Polish Motor</p>
</td>
<td>
<p align="center">0.18 KW x 2</p>
</td>
</tr>
<tr>
<td>
<p>Polish Wheel Speed</p>
</td>
<td>
<p align="center">1400 RPM</p>
</td>
</tr>
<tr>
<td>
<p>Feed Speed</p>
</td>
<td>
<p align="center">0 ~ 60 FPM</p>
</td>
</tr>
<tr>
<td>
<p>Feed Motor</p>
</td>
<td>
<p align="center">1.5 KW</p>
</td>
</tr>
<tr>
<td>
<p>Total Power</p>
</td>
<td>
<p align="center">10.4 KW</p>
</td>
</tr>
<tr>
<td>
<p>Machine Size (L x W x H)</p>
</td>
<td>
<p align="center">185" x 43" x 63"</p>
</td>
</tr>
<tr>
<td>
<p>Net Weight</p>
</td>
<td>
<p align="center">4200 LBS</p>
</td>
</tr>
</tbody>
</table>
</div>
