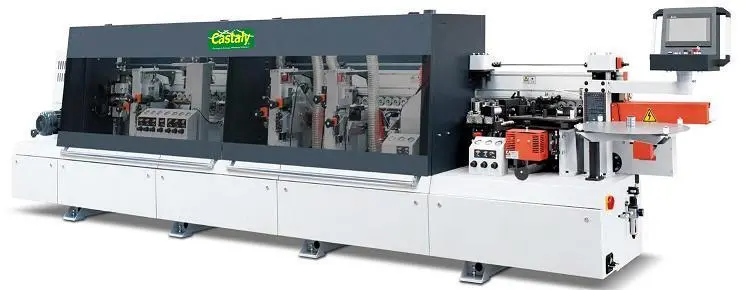

Castaly Auto Edgebander EB-K7PM

<p>Castaly Auto Edgebander EB-K7PM includes a chain track with precision ground round guides to ensure precise linear tracking of the workpiece and rubber pads to eliminate “marring.”<br><br></p> <h3>Features:</h3> <div> <ul> <li>Automatic feed station for: Pre-Mill, Gluing, Pneumatic Guillotine, Double End Trimming, Top & Bottom Fine Edge trimming, Edge Polishing (BY THE MODEL Number).</li> <li>The feed of edging material, by “strip” or coil is automatic and synchronous with panel feed.</li> <li>Sound / Safety covers for all work units with all required dust extraction outlets.</li> <li>Heavy, robust construction to eliminate vibration and ensures accuracy and stability.</li> <li>Pressure beam with staggered rubber rollers for optimum guidance of workpiece.</li> <li>Pressure beam mounted on two heavy cast columns with mechanical digital readout for thickness adjustment.<br></li> <li>Outrigger support for wider workpieces.</li> <li>Side Pressure Unit: Side pressure with one driven and two idle rollers with independent adjustment, for straight edge banding only.</li> <li>Gluing Unit: Hot melted glue unit with synchronously driven glue roller for application of hot melted glue to the vertical edge of the workpiece prior to the application of edge banding.</li> <li>End Cutting Unit: Pneumatic guillotine application for cutting end of band material.</li> <li>Double End Trimming Unit: Application for fine trimming front & rear edge by saw blade with two independent</li> <li>high frequency, inverter driven motors.</li> <li>Edge Fine Trimming Unit: This top and bottom edge fine trimming unit is completed by cutter head with two independent high frequency, inverter driven motors to round the corners and edges automatically.</li> <li>Polishing Unit: Apply the finest finish surfacing process on top and bottom edge.</li> </ul> <p>&nbsp;</p> <table style="width: 440px;" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <p><strong>SPECIFICATIONS:</strong></p> </td> <td>&nbsp;</td> </tr> <tr> <td> <p>Edging PVC Film Band Thickness</p> </td> <td> <p align="center">0.4 ~ 3 MM</p> </td> </tr> <tr> <td> <p>Workpiece Thickness</p> </td> <td> <p align="center">10 ~ 60 MM</p> </td> </tr> <tr> <td> <p>Workpiece Min. Length</p> </td> <td> <p align="center">6.3"</p> </td> </tr> <tr> <td> <p>Workpiece Min. Width</p> </td> <td> <p align="center">3.5"</p> </td> </tr> <tr> <td> <p>Gluing Roller Motor</p> </td> <td> <p align="center">0.75 KW</p> </td> </tr> <tr> <td> <p>Heating Glue Tank Power</p> </td> <td> <p align="center">2.3 KW</p> </td> </tr> <tr> <td> <p>Pre-Mill Motor</p> </td> <td> <p align="center">2.25 KW x 2</p> </td> </tr> <tr> <td> <p>Pre-Mill Cutter Speed</p> </td> <td> <p align="center">12000 RPM</p> </td> </tr> <tr> <td> <p>End Trimming Motor</p> </td> <td> <p align="center">0.7 KW x 2</p> </td> </tr> <tr> <td> <p>End Trimming Speed</p> </td> <td> <p align="center">12000 RPM</p> </td> </tr> <tr> <td> <p>Rough Edge Trimming Motor</p> </td> <td> <p align="center">0.7 KW x 2</p> </td> </tr> <tr> <td> <p>Rough Edge Trimming Speed</p> </td> <td> <p align="center">12000 RPM</p> </td> </tr> <tr> <td> <p>Fine Edge Trimming Motor</p> </td> <td> <p align="center">0.7 KW x 2</p> </td> </tr> <tr> <td> <p>Fine Edge Trimming Speed</p> </td> <td> <p align="center">12000 RPM</p> </td> </tr> <tr> <td> <p>Scraping Heads</p> </td> <td> <p align="center">2 Sets</p> </td> </tr> <tr> <td> <p>Polish Motor</p> </td> <td> <p align="center">0.18 KW x 2</p> </td> </tr> <tr> <td> <p>Polish Wheel Speed</p> </td> <td> <p align="center">1400 RPM</p> </td> </tr> <tr> <td> <p>Feed Speed</p> </td> <td> <p align="center">25 ~ 60 FPM</p> </td> </tr> <tr> <td> <p>Feed Motor</p> </td> <td> <p align="center">1.5 KW</p> </td> </tr> <tr> <td> <p>Total Power</p> </td> <td> <p align="center">14.04 KW</p> </td> </tr> <tr> <td> <p>Machine Size (L x W x H)</p> </td> <td> <p align="center">123" x 43" x 63"</p> </td> </tr> <tr> <td> <p>Net Weight</p> </td> <td> <p align="center">4900 LBS</p> </td> </tr> </tbody> </table> </div>
