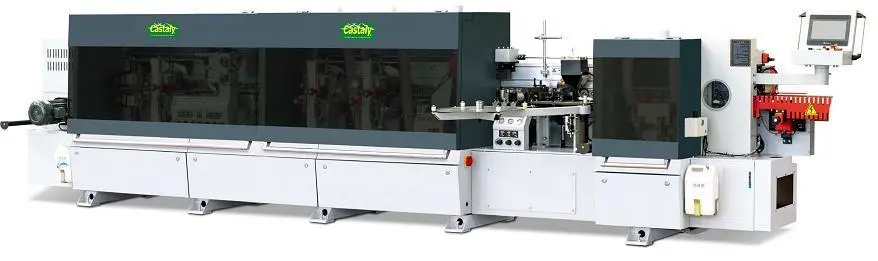

Castaly Auto Edgebander EB-K7CR
Have one to sell?
ConditionNew
New
Castaly Auto Edgebander EB-K7CR includes outrigger support for wider workpieces.
Features:
Automatic feed station for: Pre-Mill, Gluing, Pneumatic Guillotine, Double End Trimming, Top & Bottom Rough Edge trimming, Top & Bottom Fine Edge trimming, Edge Scraper, Corner - Profile Rounding, Edge Polishing, (BY THE MODEL Number).
The feed of edging material, by “strip” or coil is automatic and synchronous with panel feed.
Sound / Safety covers for all work units with all required dust extraction outlets.
Heavy, robust construction to eliminate vibration and ensures accuracy and stability.
Pressure beam with staggered rubber rollers for optimum guidance of workpiece.
Chain track with precision ground round guides to ensure precise linear tracking of the workpiece and rubber pads to eliminate “marring.”
Pressure beam mounted on two heavy cast columns with mechanical digital readout for thickness adjustments.
Side Pressure Unit: Side pressure with one driven and two idle rollers with independent adjustment, for straight edge banding only.
Gluing Unit: Hot melted glue unit with synchronously driven glue roller for application of hot melted glue to the vertical edge of the workpiece prior to the application of edge banding.
End Cutting Unit: Pneumatic guillotine application for cutting end of band material.
Double End Trimming Unit: Application for fine trimming front & rear edge by saw blade with two of the independent high frequency, inverter driven motors.
Edge Fine Trimming Unit: This top and bottom edge fine trimming unit is completed by cutterhead with two of the independent high frequency, inverter driven motors to round the corners and edges automatically.
Polishing Unit: Apply the finest finish surfacing process on top and bottom edge.
SPECIFICATIONS:
PVC Film Band Thickness
0.4 ~ 3 MM
Workpiece Thickness
10 ~ 60 MM
Workpiece Min. Length
6.3"
Workpiece Min. Width
3.5"
Gluing Roller Motor
0.75 KW
Heating Glue Tank Power
2.3 KW
Pre-Mill Motor
~
Pre-Mill Cutter Speed
~
End Trimming Motor
0.7 KW x 2
End Trimming Speed
12000 RPM
Rough Edge Trimming Motor
~
Rough Edge Trimming Speed
~
Fine Edge Trimming Motor
0.7 KW x 2
Fine Edge Trimming Speed
12000 RPM
Scraping Heads
2 Sets
Polish Motor
0.18 KW x 2
Polish Wheel Speed
1400 RPM
Corner Rounding Motor
0.7 KW x 2
Corner Rounding Speed
12000 RPM
Grooving Motor
~
Grooving Speed
~
Feed Speed
0 ~ 60 FPM
Feed Motor
1.5 KW
Total Power
9.4 KW
Air Pressure Request
90 psi
Air Volume Request
7 cfm
Machine Size (L x W x H)
213" x 43" x 63"
Net Weight
5300 LBS
