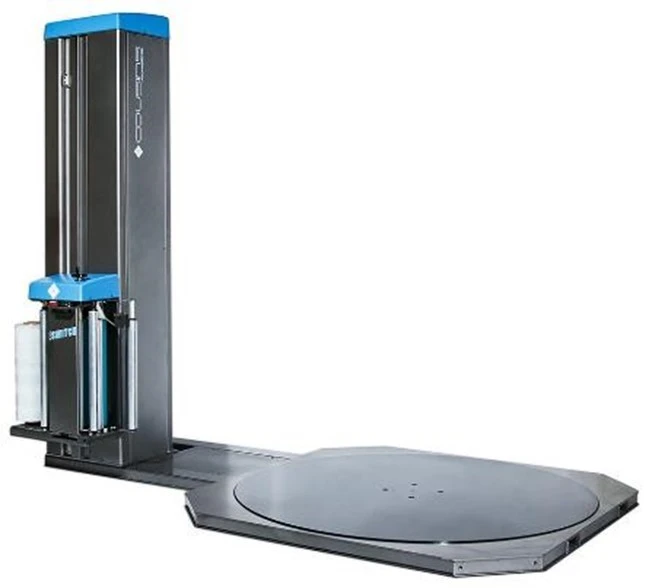

Cousins Packaging - Model LP-SW Semi-Automatic Low Profile Turntable

PRODUCTION SPEED:
 Up to 35 loads per hour
NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:
 Maximum load weight: 4500# dynamic – 10,000# static
 Maximum load size to safely clear the tower:
67” x 67” (95” diagonal) x 87” H

LOW PROFILE TURNTABLE:
 65” Diameter laser-cut steel plate with surround deck protection
 Maintenance free - 48 roller bearing support system
 Turntable height 2.75” from floor
 ANSI # 50 direct chain drive c/w chain tensioner
 Between 3 and 12 RPM rotational speed c/w soft start acceleration
 1/2 HP AC variable speed motor
 Final revolution deceleration and positive stop alignment
 Rugged surround deck for turntable protection, 3 sided loading and pit mounting
 Front and back forklift ports for easy movement
 Accu-Count exact turntable positioning system for additional film savings
 Optional loading ramp 60” long x 48” wide complete with 10” level porch area available

FILM CARRIAGE ELEVATOR:
 1/2 HP AC variable speed motor
 ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

FILM DELIVERY SYSTEM:
 20” pre-stretch film carriage
 Maximum film to roller contact
 Load cell electronic corner compensation
 33% to 313% fixed stretch capability
 Variable pre-stretch ratio with easy change
 Carriage Descent Obstruction Safety Shut-Off Device
 Safety Door with auto power cut-off switch
lifetime warranty on pre-stretch rollers

CONTROL FEATURES:
 7” color touch screen with diagnostics and advanced film auditing capabilities
 Power Off – On – Reset switch & Power On indicator light
 Single button Auto Wrap Cycle Start/Pause
 Cycle Pause for applying top sheets
 Reinforce Wrap control for mid-wrapping
 Base or Top Wraps First program
 Up Only or Up/Down wrap program
 Emergency Stop button
 Turntable Jog button
 Film Carriage Lower & Raise buttons
 Film Tension (Force-to-Load) control
 Separate film carriage raise & lower speed controls
 Operator programmable turntable speed control
 Triple beam automatic load height detection sensor for dark or shiny loads
 Separate 1 to 12 revolution top & bottom wrap control
 Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
 Cycle counter
 Ten (10) wrap program selector with capability to input and store unique wrapping parameters for program
 PASSWORD PROTECTION - The wrap program selection and wrap program setting can be password protected when turned “ON” by management after creating a password.

STRUCTURAL FEATURES:
 All structural and formed steel construction
 Forklift truck portable base structure design – lifting tubes included for front and rear access
 Electro-static powder coated paint finish

ELECTRICAL INPUT REQUIREMENTS:
 115 Volts 1 Phase 60 Hz 15 Amps with dedicated service
